Products To Suit
TOYOTA 70 SERIES

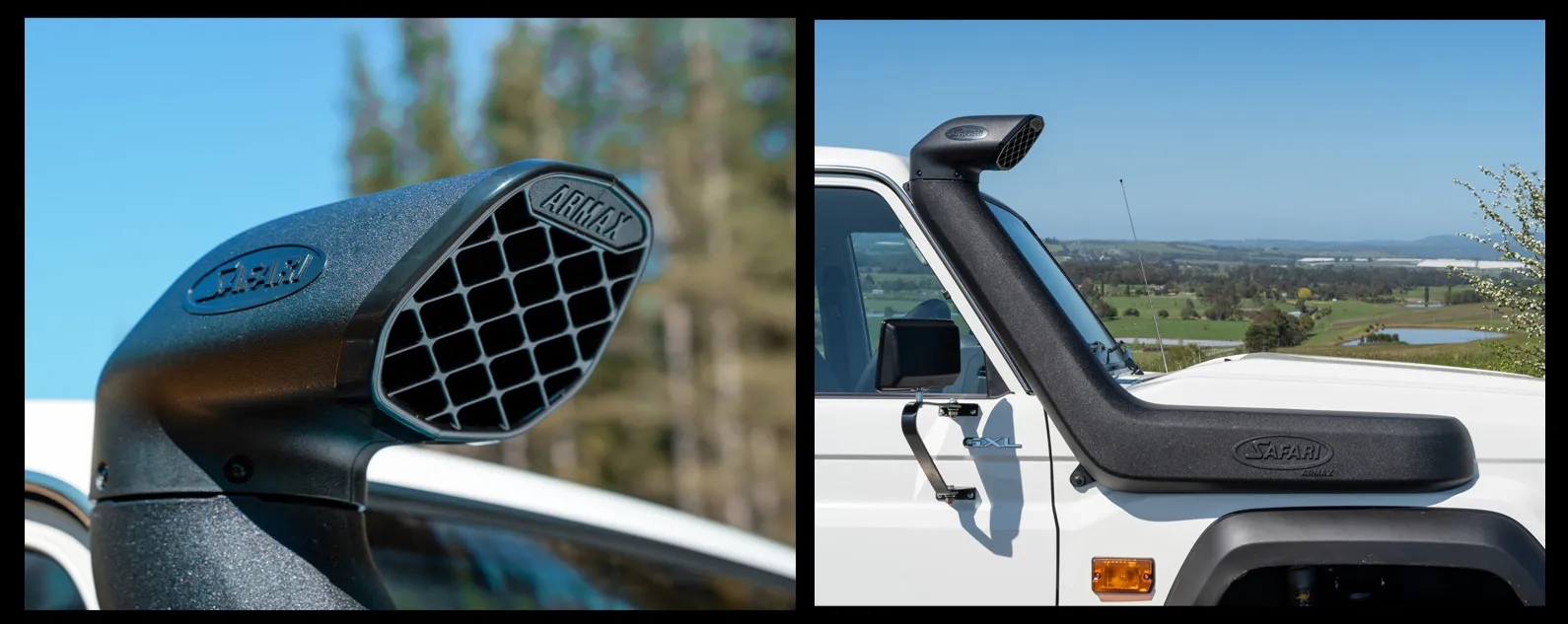

Armax SNORKEL
Safari Part Number: SS792HPVDThe SS792HPVD Safari ARMAX snorkel is purpose-built for the MY24 Facelift Toyota 70 Series V8 (1VD-FTV) engine, delivering an astonishing +100% increase in airflow over the stock air intake. This massive airflow improvement supports high-performance modifications like advanced engine tuning, upgraded turbocharger systems, and larger exhausts, ensuring your LandCruiser operates at peak efficiency. The snorkel’s cutting-edge 4" Air Ram underwent extensive CFD testing to optimize airflow, FEA testing to ensure durability, and NVH analysis to minimize noise and vibrations, so you can conquer the harshest terrains with confidence. Beyond airflow performance, the raised intake safeguards your engine from dust and water, maintaining reliable operation even in extreme off-road conditions.
Durability is a core feature of the SS792HPVD Safari ARMAX snorkel. Constructed from UV- stabilized polyethylene, it is built to withstand the toughest conditions. The snorkel’s design ensures it can endure heavy impacts and rough terrain without suffering damage, ensuring that it lasts the lifetime of your vehicle. Its precise fitment means that installation is straightforward, and its high-quality finish ensures it not only performs exceptionally but looks great on your vehicle, complementing its rugged off-road aesthetics.
- Safari ARMAX Next Generation 4” Air Ram with an optimized airflow, low restriction grill for enhanced efficiency and performance
- Comprehensive testing in CFD (Computational Fluid Dynamics), FEA (Finite Element Analysis) and NVH (Noise, Vibration, Harshness) standards on the Safari Next Generation 4” Air Ram
- +100% Increase in airflow over the standard air intake assembly
- Stainless steel hardware and EPDM moulded rubber connection hose
- Tested and approved on Safari’s in-house industry leading 1200CFM Airflow bench
- Rated to withstand temperatures in excess of 100 degrees Celsius
- Water separating Air Ram designed to remove water and dust from incoming airstream
- Proudly Australian Designed, Moulded and Manufactured
- Lifetime Warranty

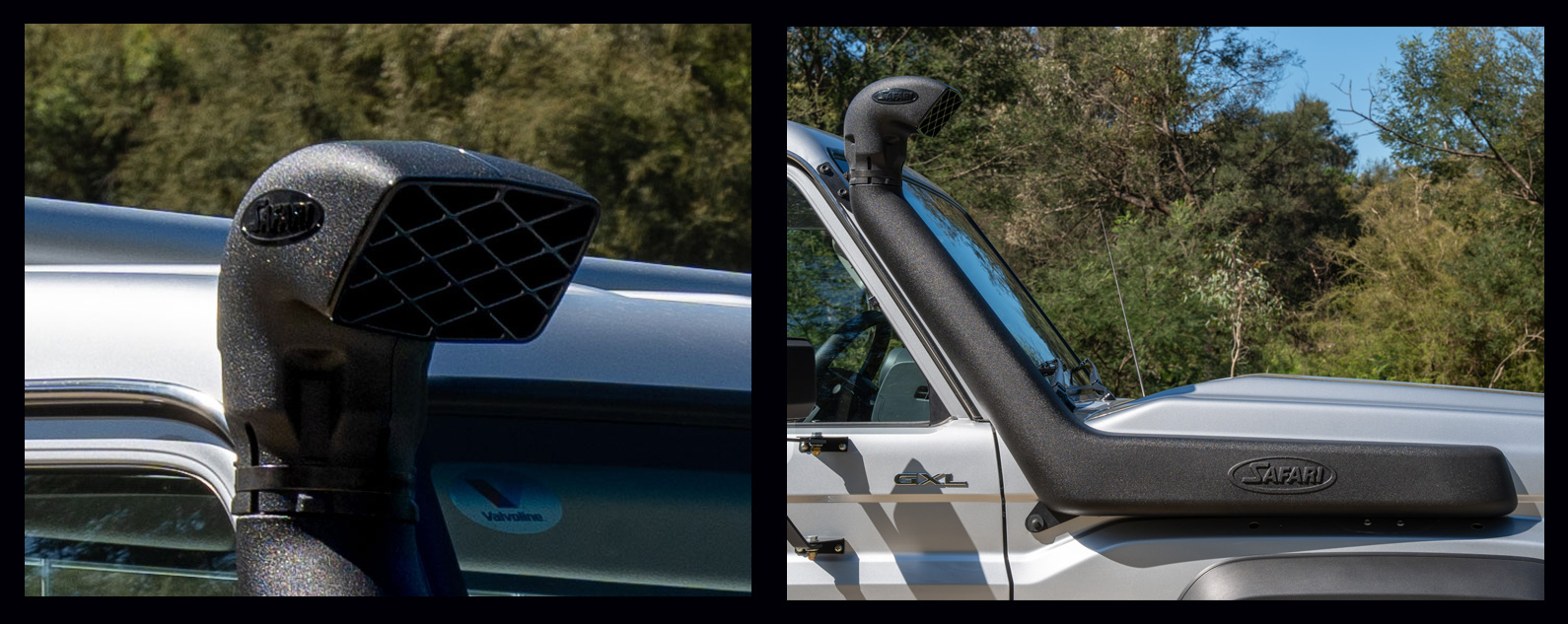

V-SPEC SNORKEL

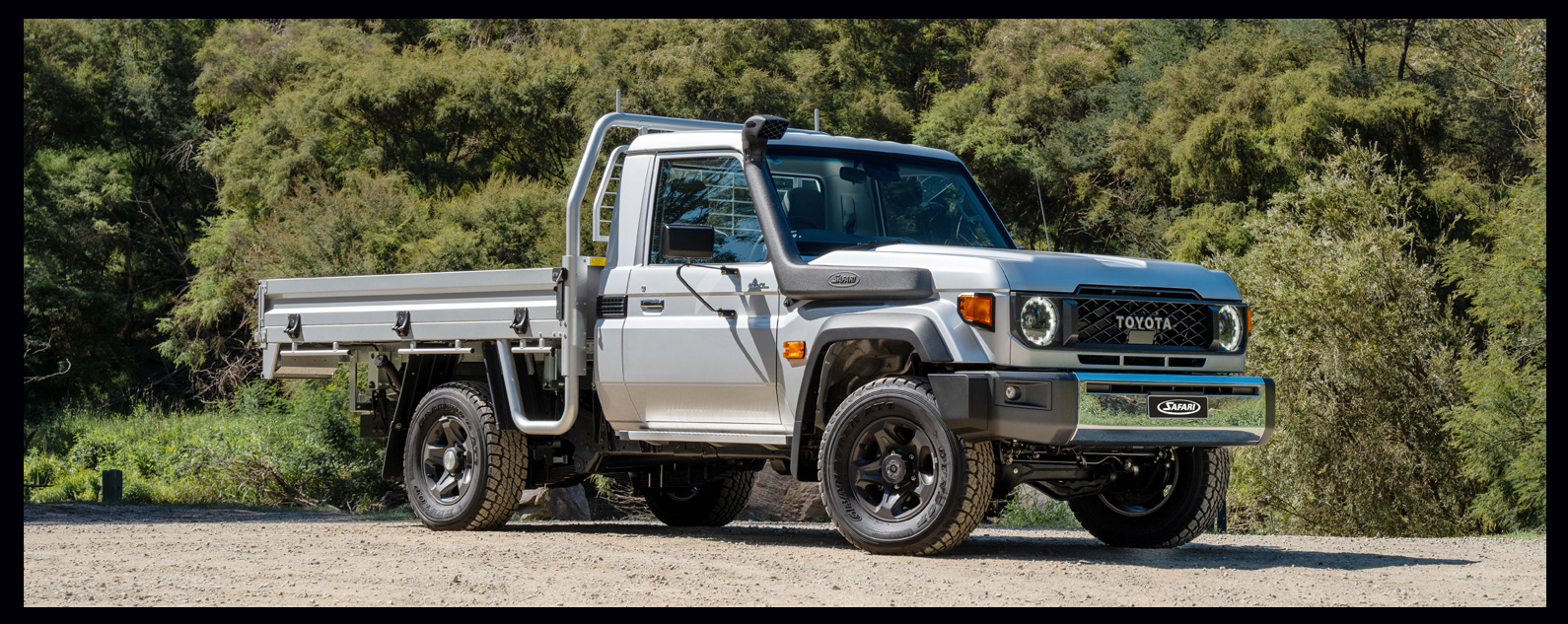

Safari Part Number: SS792HFVDThe Safari V-SPEC Snorkel is designed to offer superior protection for the Toyota LandCruiser MY24 70 Series Facelift 4.5L 8 Cylinder Diesel 1VD-FTV. Keeping harmful water and dust out of the OE air intake assembly. By sealing the air intake, this snorkel ensures that your engine remains safe and that it receives the exact airflow required for optimal reliability.
The air ram system also acts as a water and dust separator, effectively removing rainwater and dust particles from the incoming airstream, giving you the peace of mind that your engine is protected whether you’re driving through deserts or stormy weather.
- Safari V-SPEC Traditional 3.5” Air Ram with an optimised airflow, low restriction grill
- Stainless steel hardware and EPDM moulded rubber connection hose
- Tested and approved on Safari’s in-house industry leading 1200CFM airflow bench to match OE air intake requirements
- Rated to withstand temperatures in excess of 100 degrees Celsius
- Water separating Air Ram designed to remove water and dust from incoming airstream
- Proudly Australian Designed, Moulded and Manufactured
- Lifetime Warranty

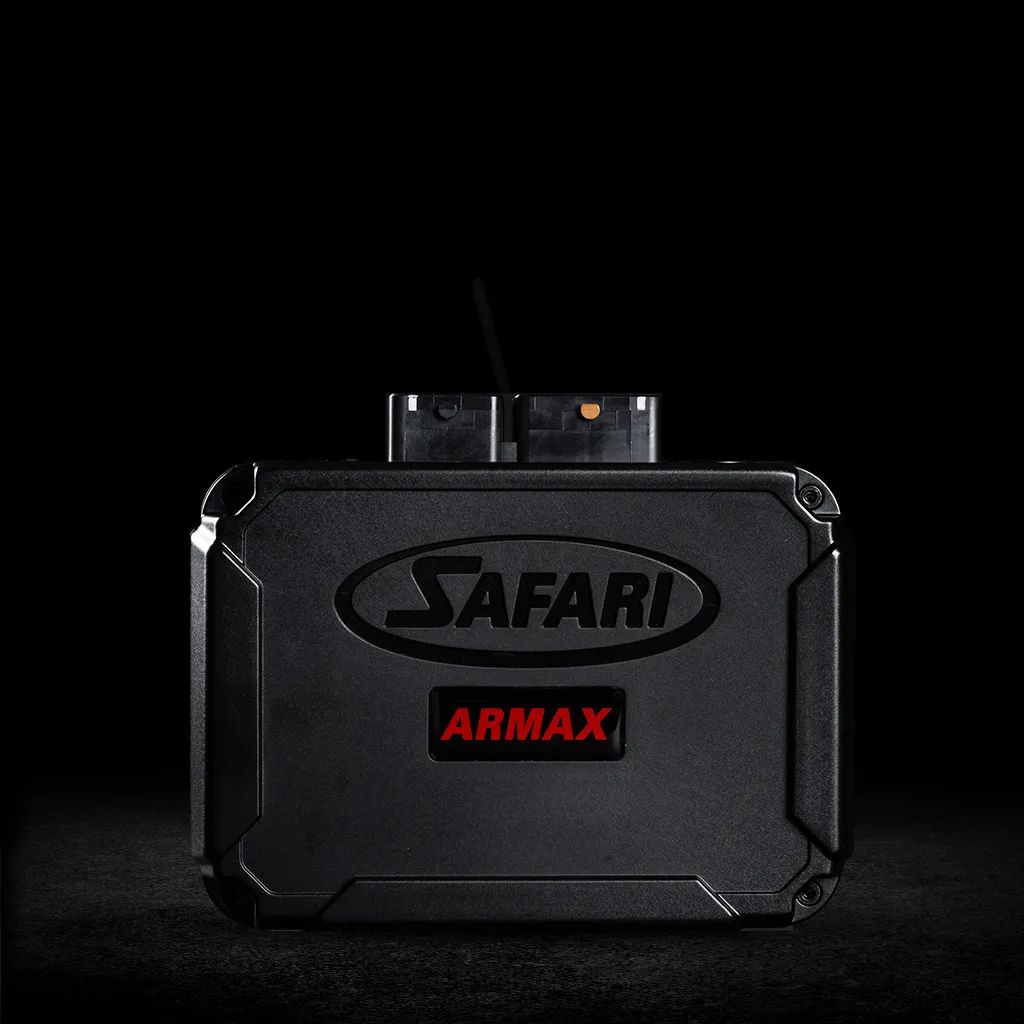

Armax ECU
Safari Part Number: SMPVDJ70MThe Safari ARMAX Engine Control Unit (ECU) is designed to work harmoniously with your vehicles OE Engine Control Unit resulting in more power, more torque, better throttle response, less fuel consumption and less turbo lag.
This is all backed up by Safari’s sophisticated engine protection systems which are constantly live monitoring your vehicle for total drivetrain safety and ultimate reliability.
- IP68 rated for water and particle ingress
- 5-way map selection switch for different driving modes
- Engine & drivetrain protection systems such as EGT control and torque reduction on gear change
- OE Style wiring harness with gold plated terminals and IP rated connectors
- Extensive library of calibration files to suit most popular aftermarket performance upgrades
- Reduced fuel consumption
- Designed, engineered and manufactured in Australia
- Remote access for support and updates
- Product and Engine/Drivetrain warranty
70 Series 1VD-FTV ECU Feature
- Direct Variable Vane Control (DVVC)
- Increased Low RPM Power and Torque
- Reduced Turbo Lag
- Increased Throttle Response
- Reduced Fuel Consumption
- Diesel Particulate Filter (DPF) Compatible
- Retains ARMAX Engine and Drivetrain Warranty*
What is Direct Torque?
The DirectTorque feature is designed specifically
for the 70 Series V8 Landcruiser where the ARMAX
Engine Control Unit (ECU) takes direct control of
the engines Turbocharger, allowing the engines
torque curve to be altered without restriction.
The ARMAX ECU optimises the engines boost delivery
to ensure strong delivery of Low RPM power and
torque. Additional benefits are reduced turbo lag,
improved throttle response and reduced fuel
consumption. Suits both DPF equipped and Non-DPF
models.

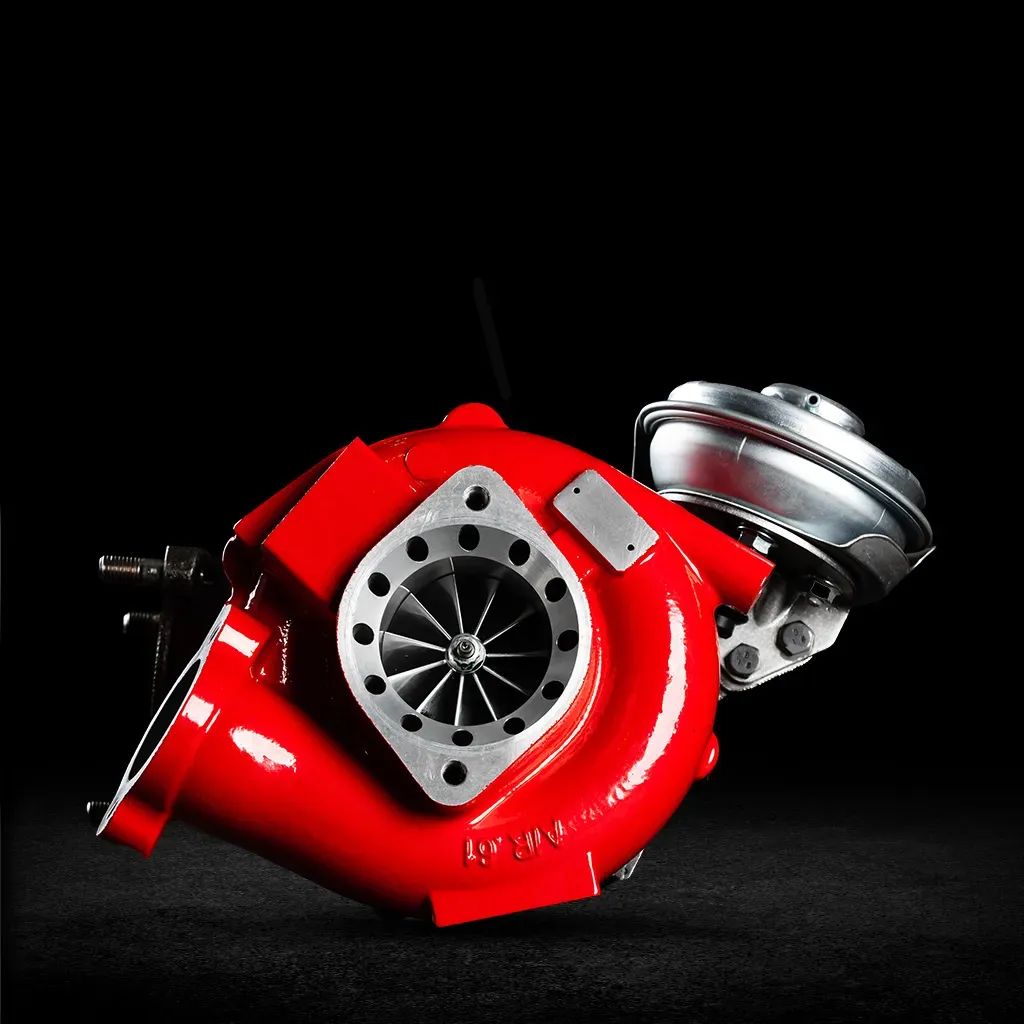

ARMAX TURBO
Safari Part Number: STVDJ70W350The professionally developed and engineered Safari ARMAX Turbocharger for Toyota’s 1VD-FTV diesel engine delivers amazing performance. The Safari ARMAX Turbocharger is designed to restore lost performance by allowing a larger air capacity through the turbocharger, in turn, offering an increase in engine power.
- 25% increased capacity over OE Turbocharger
- Wider compressor map for improved performance
- Billet Compressor Wheel
- Surge Slotted Compressor Housing
- Internal Ball bearing with 360° thrust assembly
- Direct bolt on
- Retains ARMAX Engine and drivetrain warranty*

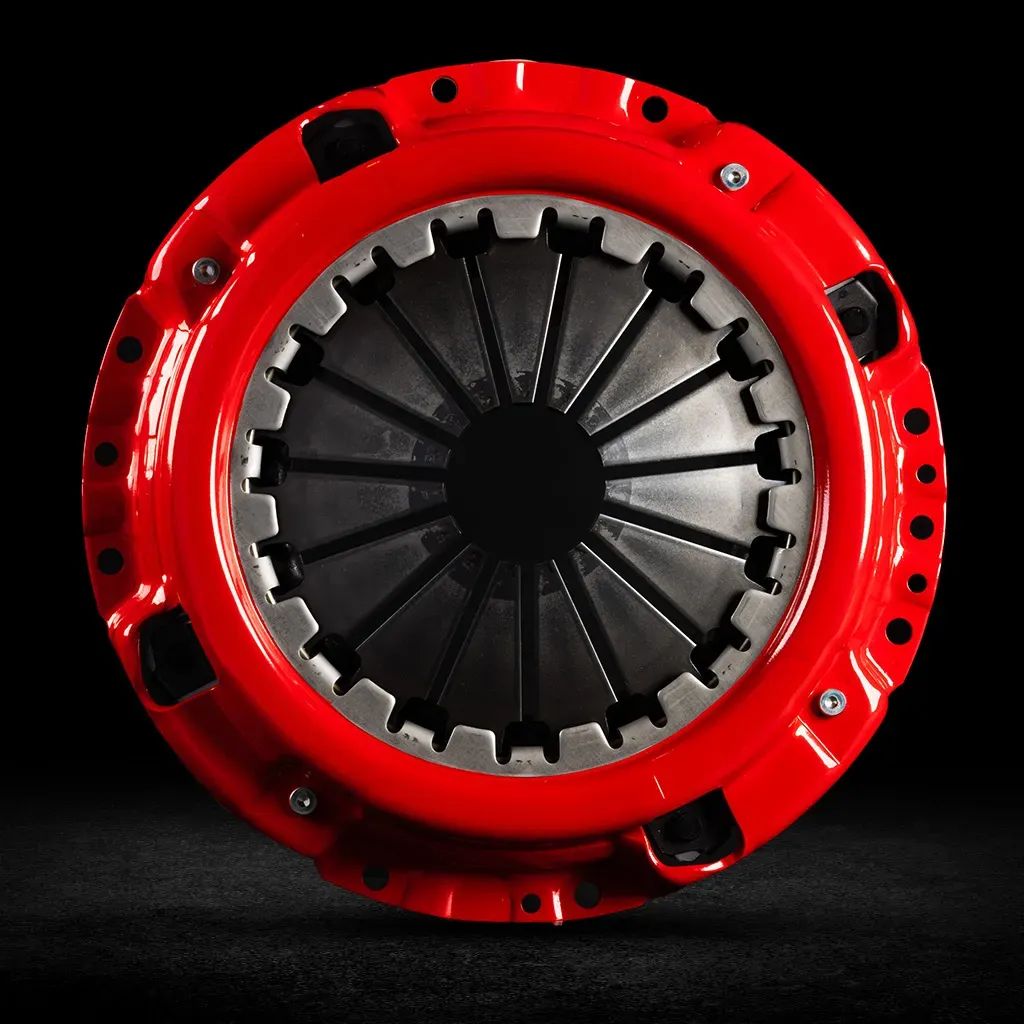

Armax CLUTCH
Safari Part Number: SDVDJ70CHDThe stock Toyota clutch is very robust and well matched to the torque output of a 1VD-FTV engine and intended use of the vehicle up to standard GVM and power levels.
In performance and/or increased GVM applications, the engine demands substantial improvement in clutch performance. Safari have engineered a replacement clutch rated to 1100nm of torque which provides a 250% increase in torque capacity whilst maintaining stock driveability characteristics.
- 1100Nm (250%) Increased Torque Capacity
- Designed for increased power, torque and high GVM applications
- Long service life maintains torque capacity within 10% over the wear rate
- of the clutch disc
- Standard vehicle pedal feel with improved diaphragm lift control
- Safari ARMAX slave cylinder
- OE drive characteristics
- 12 months 20,000km product warranty
- Safari ARMAX Engine & Drivetrain warranty*

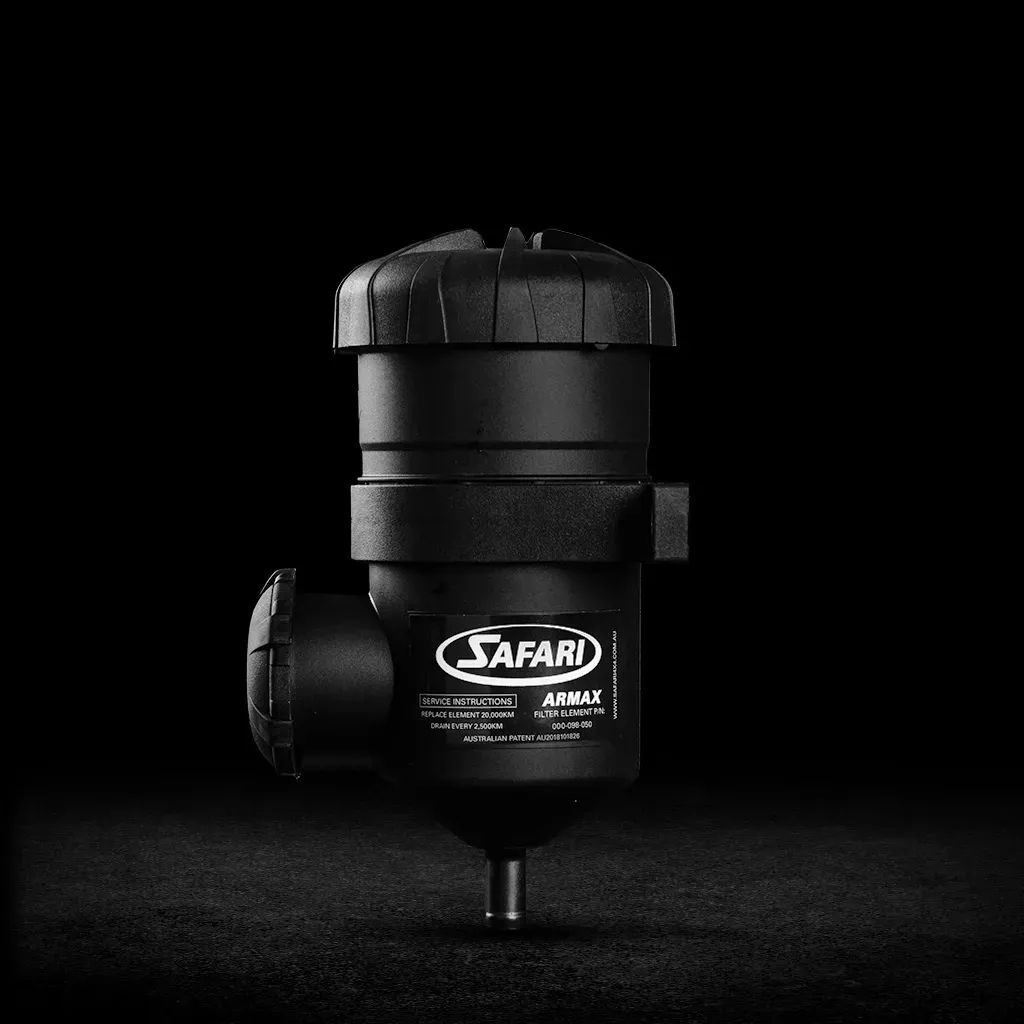

ARMAX OIL SEPARATOR
Safari Part Number: SOSVDJ70Clean charge air to an engine’s intake is critical for maximising performance and fuel economy. The Safari Oil to Air Separator is designed to remove oil particles that enter the intake charge air. Oil Vapour separation prevents the build-up of soot in the vehicle’s air intake manifold and critical engine components are kept clean.
- Crank case oil vapour separation
- Reduces intake carbon build up
- Allows clean air delivery to engine
- Improves performance and fuel consumption
- Reduced engine oil contamination
- Reduces intercooler outlet temperatures
- Serviceable filter
- Fully sealed and internally bypassed

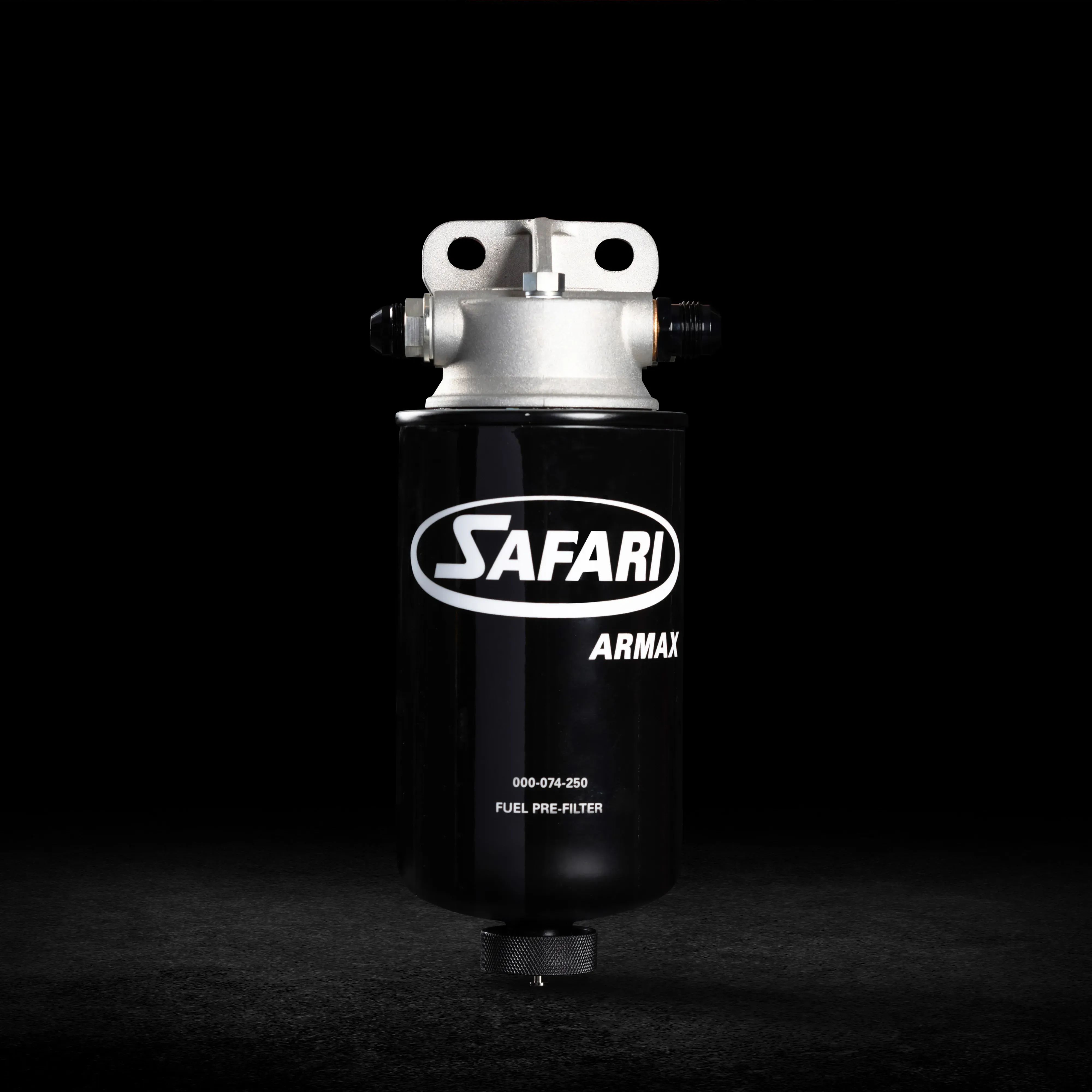

Armax FUEL PRE-FILTER
Safari Part Number: SFFVDJ70RHDiesel fuel can become easily contaminated with water and/or micro particle matter which highly degrades the quality and effectiveness of the fuel being injected into an engine. Contaminated diesel fuel is one of the most common causes of diesel engine failure. By adding a Safari ARMAX Auxiliary Pre Fuel Filter, the diesel fuel is passed through a 30 micron primary filter before it reaches the vehicle’s standard final fuel filter.
- 98% particle separation (based on 30 micron particles)
- Designed for high output applications
- 100% water separation efficiency (based on 300μm droplet size)
- Prevents premature engine component failure
- Easily serviceable
- In-cab water detection alert
- Maintains Safari ARMAX ECU engine and drivetrain warranty
