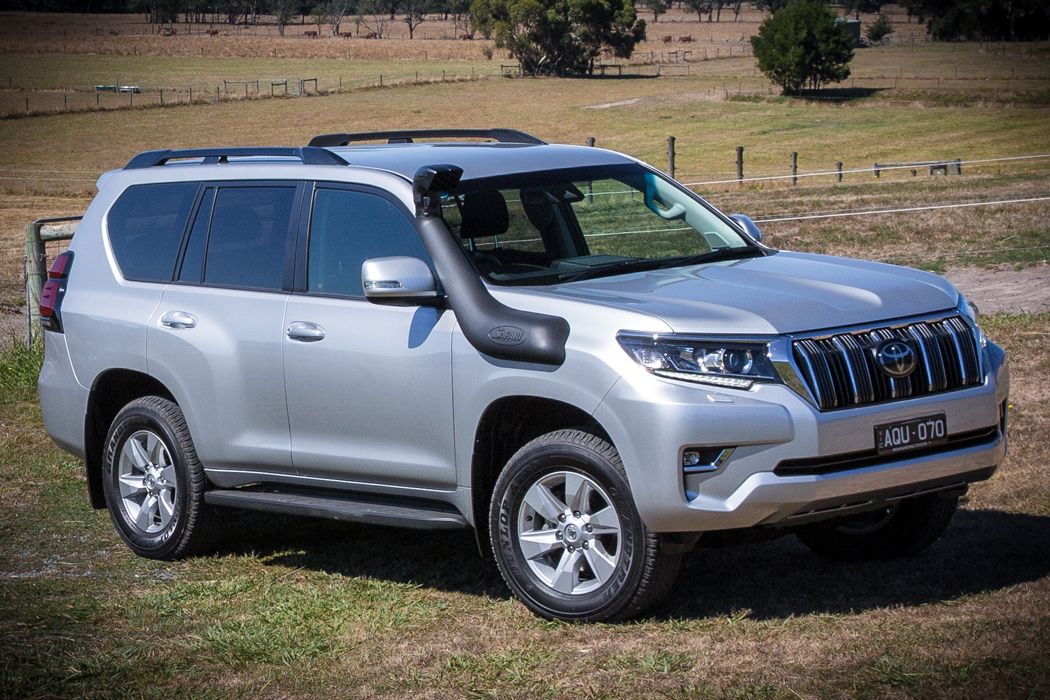

toyota landcruiser prado 2018 safari snorkel

4X4 SNORKEL suitable for the Toyota Prado 150 Series 2018 Onwards 2.8L Diesel 1GD-FTV

Safari Part Number: SS190HF

Safari offer a range of products not only limited to the traditional Safari Snorkel.

From Safari V-Spec Snorkels to give you the protection that your 4x4’s engine needs and deserves to high flowing Safari ARMAX performance snorkels that have been specifically designed to give your 4x4 the air flow that it needs to work in conjunction with other engine modifications.

Safari also offer an engine management solution for increased engine power and torque levels. This gives you the power that your 4x4 deserves for everyday use and can also help you tow heavy loads with ease.

Each Safari ARMAX ECU (Engine Control Unit) is calibrated specifically to suit your vehicle whether it is standard of to suit the modifications that your vehicle has.

Safari ARMAX ECU’s are completely reversible and offered as a ‘plug-and-play’ solution.

Safari Snorkel

The SS190HF Safari Snorkel suitable for Toyota Prado 150 Series 4x4 is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 2.8L Diesel 1GD-FTV engines.

With the huge air flow demands of each engine in the Toyota 2.8L Diesel 1GD-FTV Prado 150 Series, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkeldesign suitable for Toyota Prado 150 Series. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Snorkel suitable for Toyota Prado 150 Series 4x4 is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Safari Snorkel suitable for Toyota Prado 150 Series breezes through the toughest off-road conditions on the planet.

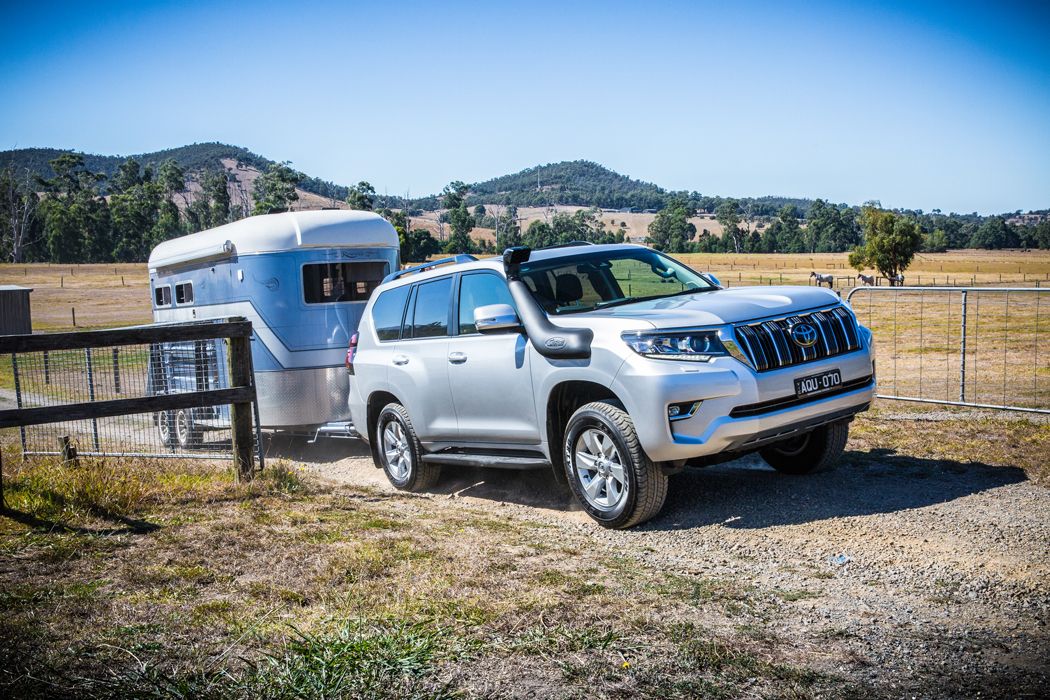

toyota landcruiser prado 2018 safari snorkel ecu

Safari Snorkel suitable for Toyota LandCruiser Prado 150 Series 4x4 Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 2.8L Diesel 1GD-FTV engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Snorkel fitting guide suitable for Toyota LandCruiser Prado 150 Series 4WD with an accurate template for assisting with installation.

Safari’s ARMAX ECU is the ultimate tuning device for late model, electronically controlled diesel fuel injected vehicles.

  • Maximum Reliable Power Increase
  • Direct Control of Exhaust Gas Temperature (Thermal Load)
  • Direct Control of Fuel Injection Open Duration (Closed Loop)
  • Direct Control of Fuel Pressures
  • Direct Control of Turbocharger Operation (Boost)
  • Cold Start Engine Protection

Totally sealed electronics, watertight, dustproof, developed and calibrated for the Australian Outback’s harshest conditions.

Diesel engines function in a completely opposite manner to Gasoline engines.

That is to say, RICHER fuel/air ratios, (more fuel) results in a diesel engine running HOTTER and producing MORE power.

LEANER (more air) means a diesel engine running COOLER; however producing LESS power.

As a consequence of the above, contrary to assertions from many CHIP suppliers, it is fundamentally impossible to simultaneously offer substantially increased power from a diesel engine, directly coupled with improved fuel consumption, purely by installation of a CHIP.

safari armax ecu transparent cover

However, fuel consumption CAN be improved by simultaneously installing other components such as improved flow air entry and exhaust systems, thus increasing engine efficiency.

A well designed, manufactured and correctly CALIBRATED ECU ( Engine Control Unit, not merely a CHIP), CAN offer substantial increases in power. Typically 25% by installation of the ECU alone and upwards of 50 to 60% over standard, when coupled with appropriately matched additional components. In some cases, these additional components may also result in improved fuel consumption under light load, or cruise conditions.

Safari Snorkel Installation Guide

picture_as_pdfToyota Prado 150 Series MY18 Onwards 2.8L Diesel 1GD-FTV Diesel

ECU Brochure (Click to download)

Safari armax ecu brochure cover
