4X4 PRODUCTS suitable for Toyota Fortuner 156 Series 08/2015 Onwards 2.8L Diesel
Safari Part Number: SS156HF

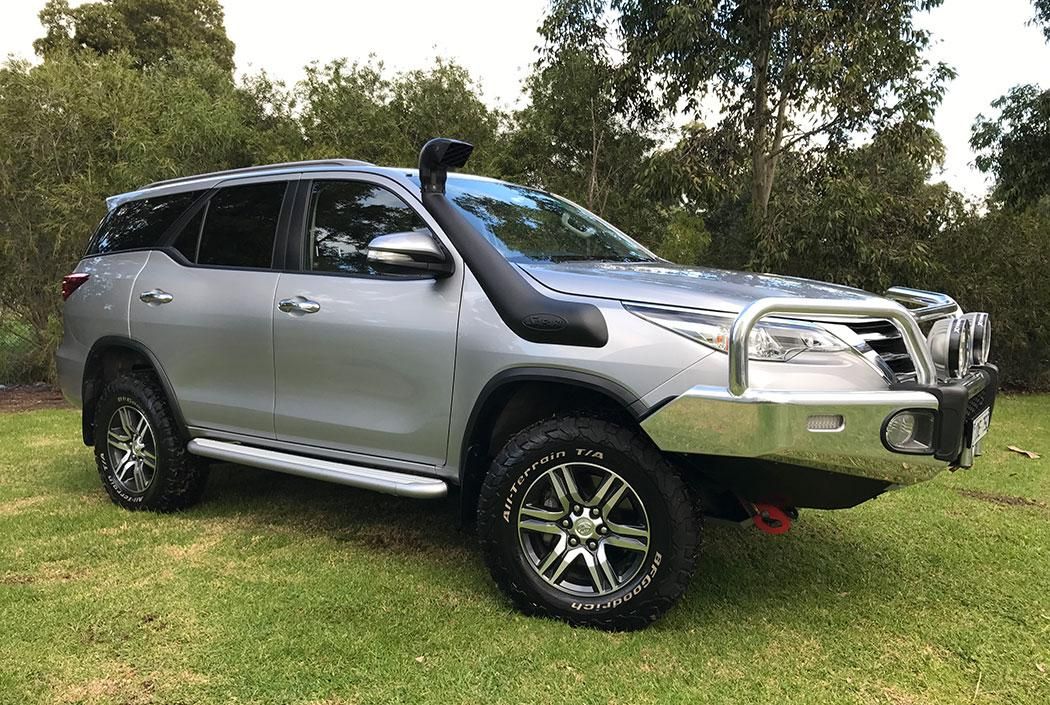

Safari Snorkel
The SS156HF Safari Snorkel to suit the Toyota Fortuner 156 Series 4x4 is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 08/2015 Onwards 2.8L Diesel 1GD-FTV engines.
With the huge air flow demands of each engine in the Toyota 08/2015 Onwards 2.8L Diesel 1GD-FTV Fortuner 156 Series, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel design to suit the Toyota Fortuner 156 Series. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Snorkel to suit Toyota Fortuner 156 Series 4x4's are manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Toyota Fortuna 156 Series snorkel breezes through the toughest off-road conditions on the planet.
Safari Snorkel to suit Toyota Fortuner 156 Series 4x4 Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your 08/2015 Onwards 2.8L Diesel 1GD-FTV engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Snorkel fitting guide suitable for Toyota Fortuner 156 Series 4WD with an accurate template for assisting with installation.
Safari Snorkel to suit Toyota Fortuner 156 Series - Parts List
4WD Snorkel to suit Toyota Fortuner 156 Series 08/2015 Onwards 2.8L Diesel 1GD-FTV Models - Safari 4x4 Engineering Snorkel to suit Toyota Fortuner 156 Series 4x4 Snorkel Part Number SS156HF

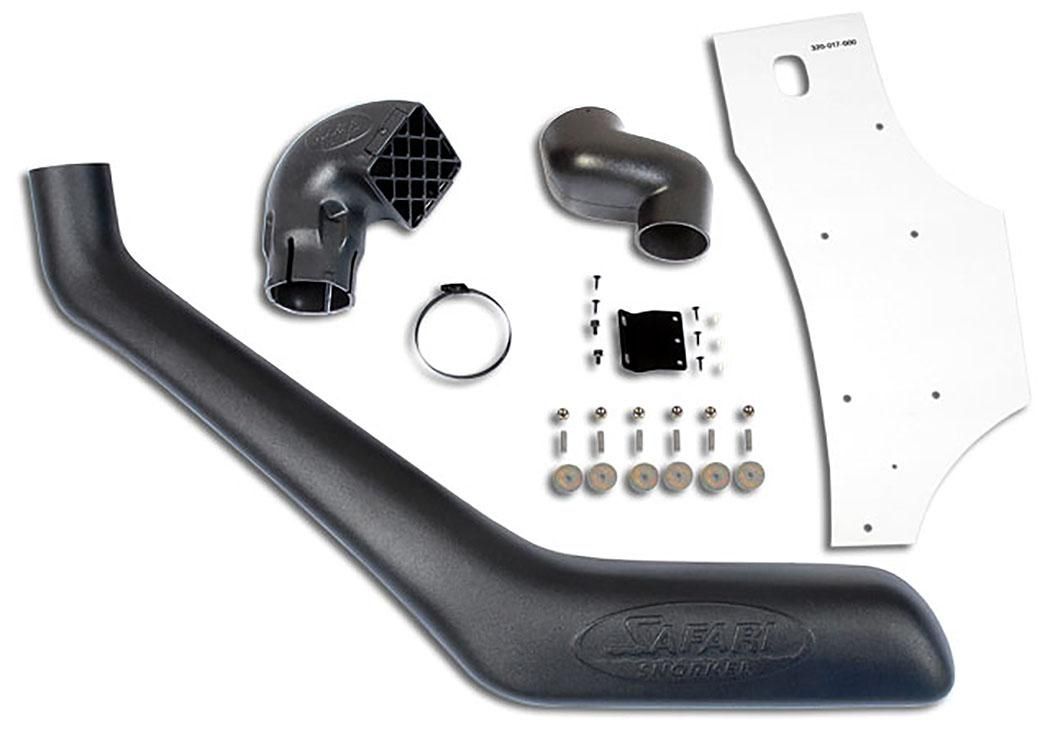

* SS122HF snorkel to suit Toyota Hilux Shown

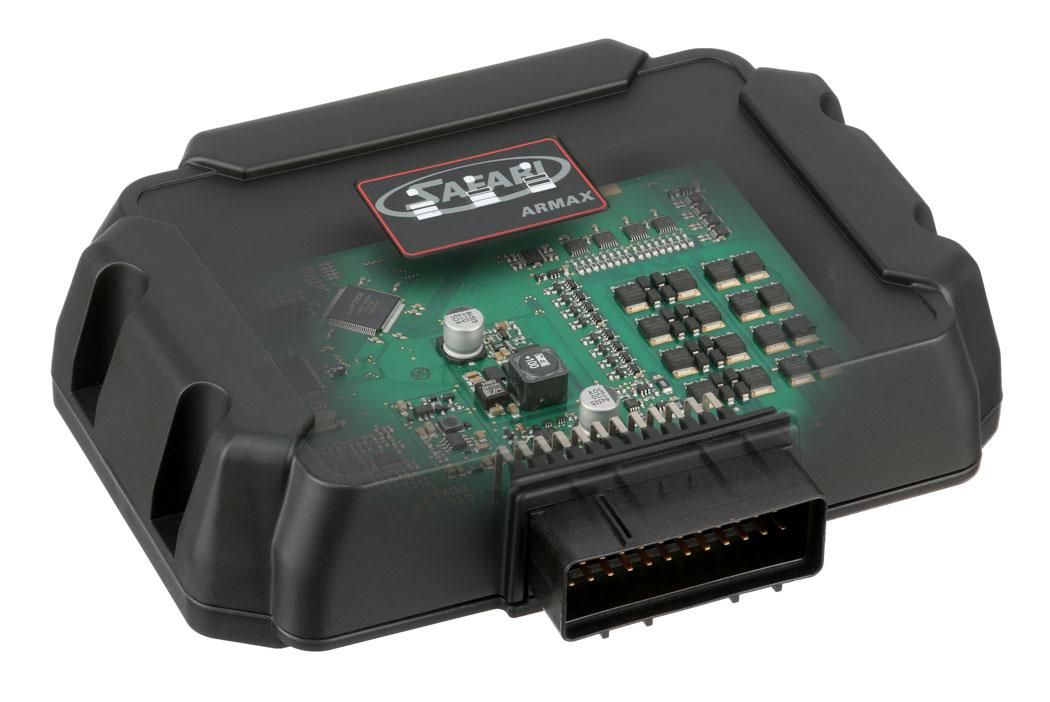

Safari’s ARMAX ECU to suit Toyota Fortuner 156 Series is the ultimate tuning device for late model, electronically controlled diesel fuel injected vehicles.
- Maximum Reliable Power Increase
- Direct Control of Exhaust Gas Temperature (Thermal Load)
- Direct Control of Fuel Injection Open Duration (Closed Loop)
- Direct Control of Fuel Pressures
- Direct Control of Turbocharger Operation (Boost)
- Cold Start Engine Protection
Totally sealed electronics, watertight, dustproof, developed and calibrated for the Australian Outback’s harshest conditions.
Diesel engines function in a completely opposite manner to Gasoline engines.
That is to say, RICHER fuel/air ratios, (more fuel) results in a diesel engine running HOTTER and producing MORE power.
LEANER (more air) means a diesel engine running COOLER; however producing LESS power.
As a consequence of the above, contrary to assertions from many CHIP suppliers, it is fundamentally impossible to simultaneously offer substantially increased power from a diesel engine, directly coupled with improved fuel consumption, purely by installation of a CHIP.
However, fuel consumption CAN be improved by simultaneously installing other components such as improved flow air entry and exhaust systems, thus increasing engine efficiency.
A well designed, manufactured and correctly CALIBRATED ECU ( Engine Control Unit, not merely a CHIP), CAN offer substantial increases in power. Typically 25% by installation of the ECU alone and upwards of 50 to 60% over standard, when coupled with appropriately matched additional components. In some cases, these additional components may also result in improved fuel consumption under light load, or cruise conditions.
Safari Snorkel Installation Guides
SS156HF to suit Toyota Fortuner 156 Series 08/2015 Onwards 2.8L Diesel 1GD-FTV 807.09 KB
ECU Brochure (Click to download)
