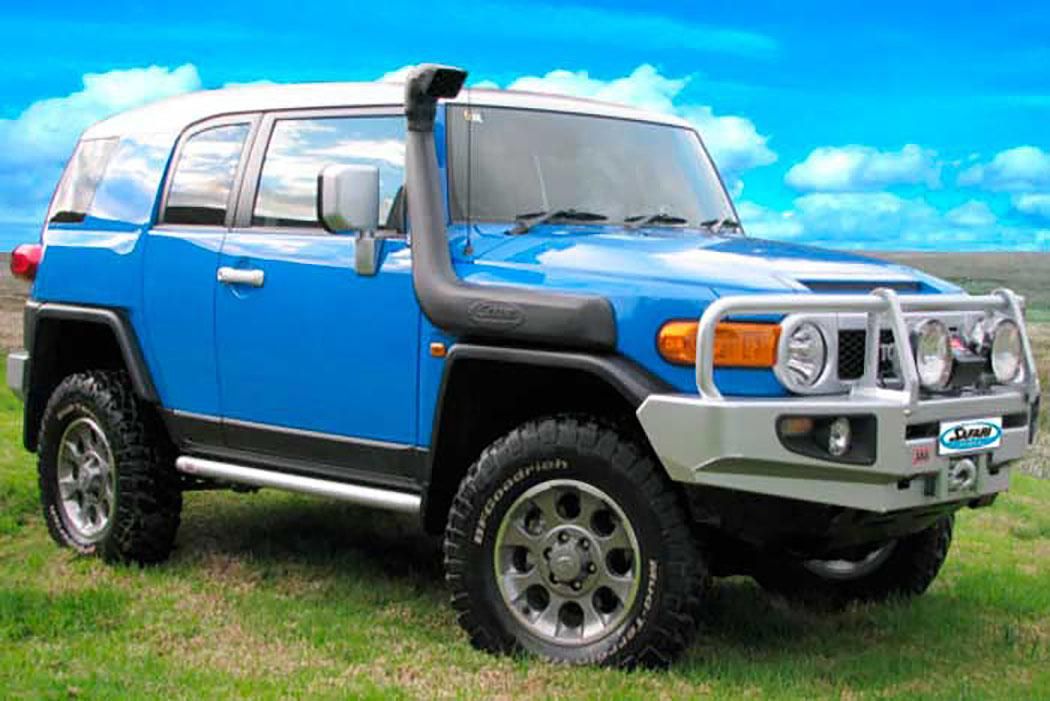

ss420hf snorkel toyota fj cruiser

4X4 SNORKEL suitable for Toyota FJ Cruiser 2010 Onwards

Safari Part Number: SS420HF

Safari Snorkel

The SS420HF Safari Snorkel to suit Toyota FJ Cruiser is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 2010 onwards engines.

With the huge air flow demands of each engine in the Toyota 2010 onwards FJ Cruiser, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Snorkel to suit Toyota FJ Cruiser 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Safari Snorkel to suit Toyota FJ Cruiser breezes through the toughest off-road conditions on the planet.

Safari Snorkel to suit Toyota FJ Cruiser Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your FJ Cruiser 2010 onwards engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Snorkel fitting guide to suit Toyota FJ Cruiser 4WD with an accurate template for assisting with installation.

Safari Snorkel to suit Toyota FJ Cruiser 4x4 Kit - Parts List

To suit Toyota FJ Cruiser 4WD 2010 Onwards Models - Safari 4x4 Engineering Snorkel to suit Toyota FJ Cruiser 4x4 Part Number SS420HF

ss420hf toyota fj cruiser snorkel kit

Actual model not shown.

ITEMPART NO.
DESCRIPTION
QTY
1 340-133-000 BODY - SNORKEL (SS410HF) 1
2 000-135-800 3 ½" AIR RAM ASSEMBLY 1
3 340-032-000 BRACKET - UPPER MOUNTING 1
4 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) 3
5 000-951-300 SCREW - S/T - 4.2mm x 16mm - S/S 3
6 000-960 INSERT - PLASTIC 3
7 000-110 STUD - 8mm x 1.25 x 25mm - S/S 8
8 000-311-300 WASHER - BODY - 8mm x 30mm - S/S 8
9 000-205-300 NUT - NYLOC - 8mm x 1.25mm - S/S 8
10 340-024-400 HOSE - AIR ENTRY 1
11 000-910 CLAMP - HOSE - 90/110mm 1
12 000-1911 CLAMP - HOSE - 100/120mm 1
13 340-704-000 BLANK-OFF - INDICATOR 1
14 000-093-300 BOLT - B/H CAP SCREW 4mm x 0.7mm x 12mm - S/S 2
15 000-300-350 WASHER - BODY 4mm x 11mm - S/S 2
16 000-223-300 NUT - NYLOC - 4mm x 0.7mm - S/S 2
17 000-914/B CLAMP - HOSE - SIZE 56 (BLACK) 1
18 340-017-200 TEMPLATE - INDICATOR RELOCATION    1
19 340-017-000 TEMPLATE - GUARD PANEL 1

Safari Snorkel Installation Guide

picture_as_pdfSS420HF to suit Toyota FJ Cruiser 2010 Onwards
