Safari ARMAX Performance Overview:
Safari ARMAX Performance products suitable for Toyota Land Cruiser 80 Series Diesel include engine management, exhaust, snorkel, oil cooler and drivetrain systems. Safari 4x4 Engineering ARMAX products are a combination of durable components and thoroughly engineered systems designed to enhance Toyota Land Cruiser 80 Series Diesel 4WD performance, durability and driveability - particularly vehicles that tow heavy loads or with increased duties ranging from four-wheel driving anywhere across the globe to the added GVM of the Armouring Industry.
ARMAX Products suitable for the Toyota Land Cruiser 80 Series Diesel include:
- Engine Management
- Exhaust System
- Snorkel
- Oil Cooler
- Drivetrain components.
Safari Toyota 4x4 ARMAX Performance Systems have long been regarded as the ultimate in tough and powerful technology for diesel 4x4 vehicles. Precision built to OEM standards, every Safari ARMAX Performance product not only delivers a huge improvement in engine power and torque, but more importantly, robust, reliable and fuel efficient performance for many thousands of kilometres of rough and demanding roads and tracks.

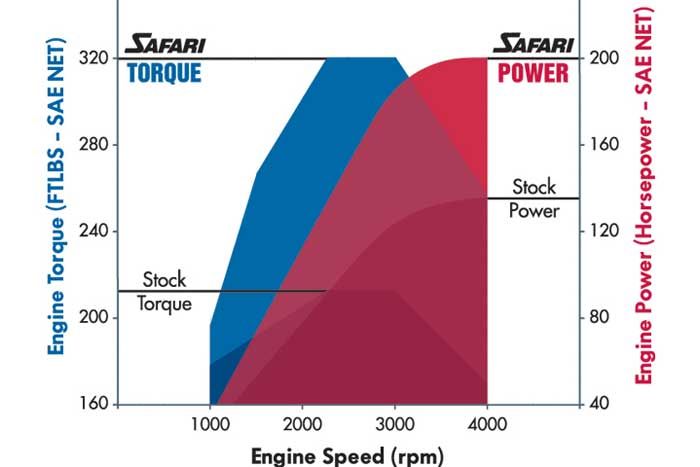

*Safari ARMAX Performance Products suitable for Toyota Land Cruiser 70 Series 1HZ dyno graph shown.

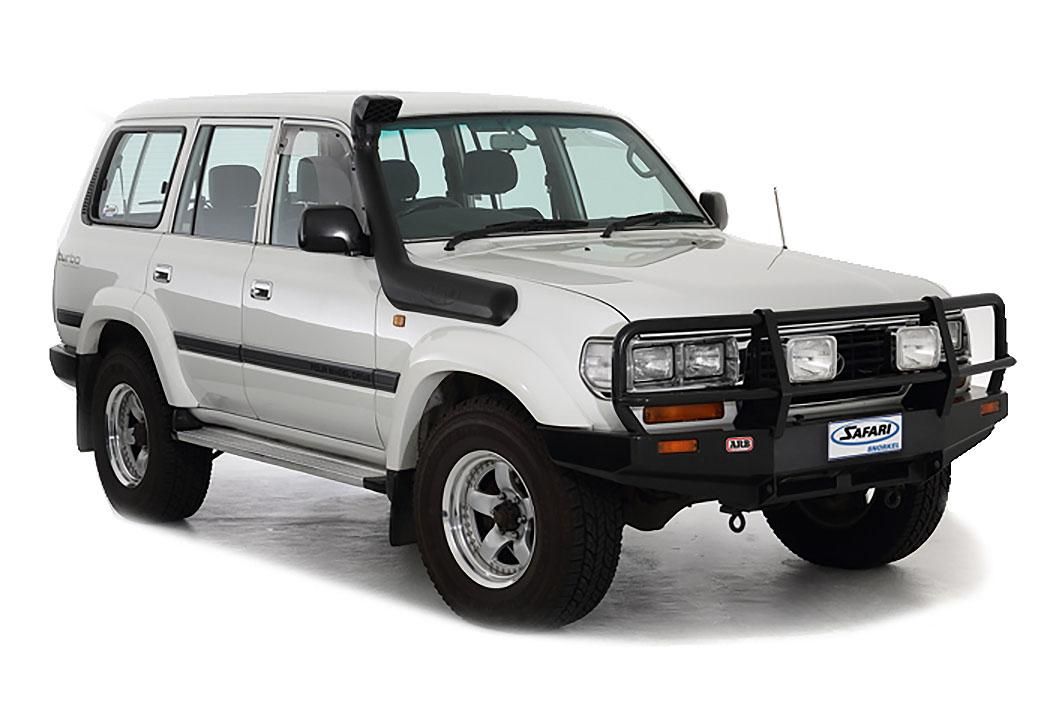

Part Number: SS82HF
- Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your 01/1990-03/1998 Onwards 4.2L Diesel engines
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Snorkel fitting guide suitable for Toyota 80 Series Land Cruiser 4WD with an accurate template for installation.
- Lifetime Warranty
The SS82HF Safari Snorkels suitable for Toyota 80 Series Land Cruiser 4x4 are designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 01/1990-03/1998 Onwards Diesel engines.
With the huge air flow demands of each engine in the Toyota 01/1990-03/1998 Onwards Diesel 80 Series Land Cruiser, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Snorkel suitable for Toyota 80 Series Land Cruiser 4x4 is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Safari Snorkel suitable for Toyota 80 Series Land Cruiser breezes through the toughest off-road conditions on the planet.
V-Spec snorkels are identified with a ‘HF’ at the end of the part number. These snorkels are manufactured in Australia from Safari’s own industrial specification UV stabilized polyethylene material. A life time warranty is included for peace of mind when it comes to your vehicle.
Safari ARMAX Engine Management suitable for 80 Series Diesel 1HZ
Safari ARMAX Engine Management suitable for 80 Series Diesel 1HZ Part Numbers:
1HZ Diesel Engine ONLY
330-087-000 - ARMAX Boost Compensator to suit 80 Series Diesel 1HZ Engine
Details Available Soon
Safari 4x4 Engineering - ARMAX Boost Compensator to suit 80 Series Diesel 1HZ
Safari ARMAX Exhaust suitable for 80 Series Diesel Engine
Safari ARMAX Exhaust suitable for 80 Series Diesel 1HZ Engine Part Numbers:
SEHZJ80 - 3" Diameter mandrel formed High Output Exhaust system suitable for the 80 Series Toyota Land Cruiser fitted with Safari Turbo System (ST1HZ80/STHZJ80) - 1HZ 4.2L Diesel Engine
SEHDJ80 - 3" Diameter mandrel formed High Output Exhaust system suitable for the 80 Series Toyota Land Cruiser Factory Turbo Diesel Engine (1HD-T/1HD-FT)

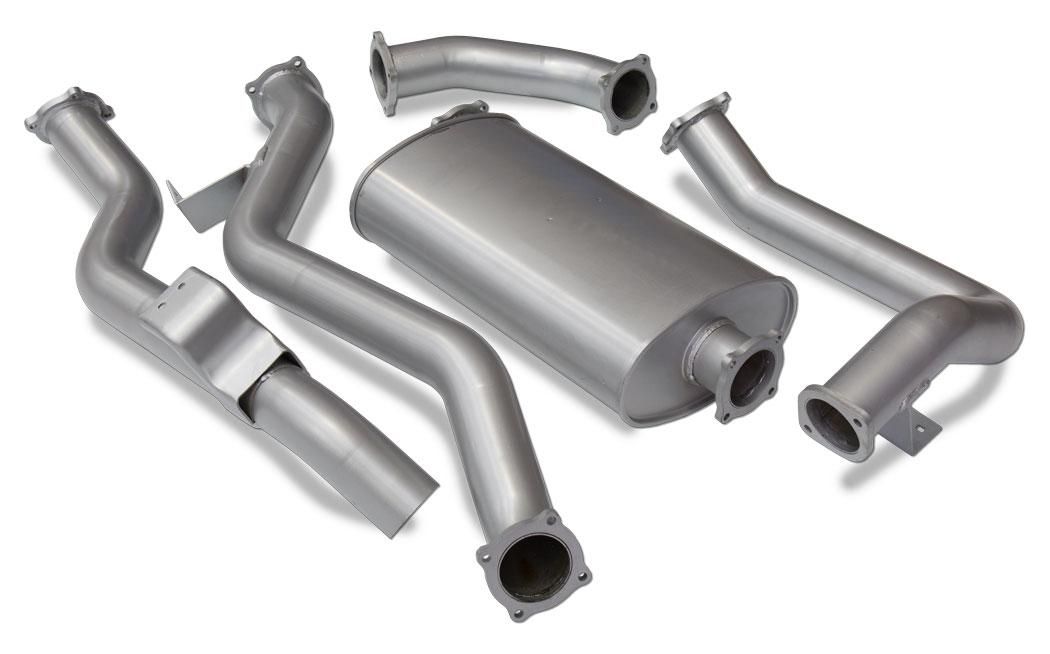

*Safari ARMAX Exhaust suitable for Toyota Land Cruiser 70 Series Wagon Shown
Unlike intercooling which lowers the intake charge air temperature, a highly efficient exhaust system evacuates hot exhaust gasses quickly from the exhaust manifold and promotes cooler combustion chamber temperatures.
Safari 4x4 Engineering has developed what is arguably the ultimate in maximum efficiency exhaust systems suitable for the 80 Series Diesel 1HZ Engine 4WD. Precision manufactured in true 3" tube for high gas flow capacity, aluminised steel for corrosion resistance, mandrel bent for maximum flow efficiency and 4-bolt flanged exhaust connections for high strength, unmatched fatigue resistance and a lifetime of leak-free operation. Moreover, this Safari ARMAX Toyota exhaust system has been designed for the maximum clearance to vital components, zero contact with body and suspension and installation is a breeze.
The increase in maximum gas flow through the removal of the standard 1HZ/1HD-FT diesel system's restrictions results in a significant power increase for your 80 Series Diesel 1HZ or 1HD-FT Engine without the usual increases in exhaust gas/cylinder head temperatures
.The result is a superb Safari ARMAX exhaust system that delivers almost 100% improvement in exhaust gas flow capacity for Toyota Land Cruiser 80 Series 4x4's.
Safari ARMAX Exhaust suitable for 80 Series
Safari ARMAX Drivetrain Products suitable for 80 Series Diesel 1HZ
Part Numbers:

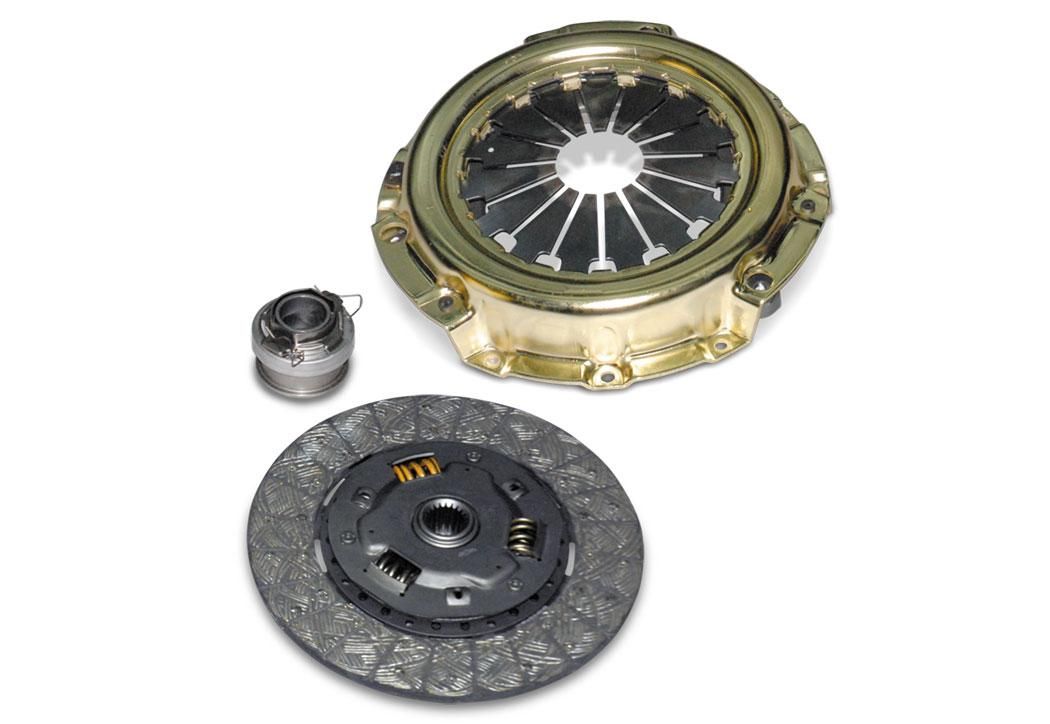

SDHZJ80 - Clutch System suitable for the 80 Series Land Cruiser (1HZ Engine ONLY) - 40% increase in torque capacity
Standard Toyota 80 Series Diesel 1HZ Engine clutches are often well matched to torque and power outputs of standard vehicles being used in standard conditions. Once you have increased power and/or torque or increased GVM or towing capacity for your Toyota 4x4, the clutch becomes the weak link in utilising all that your vehicle has to offer.
Safari have stepped up to the plate and engineered ARMAX clutch assemblies suitable for Toyota 80 Series Diesel that have 40% or 60% higher torque capacity as required. That is a huge improvement and best of all, maintains stock drivability characteristics.
The Safari ARMAX clutch assembly suitable for your Toyota 80 Series Diesel 1HZ Drivetrain allows you to fully utilise the torque of your vehicle with unsurpassed driveability and durability.
Safari 4x4 Engineering - ARMAX Clutch suitable for Toyota 80 Series Diesel 1HZ
