4X4 SNORKEL for the Nissan Pathfinder 05/2010 Onwards Spain Built (VIN: VSK) 2.5L Diesel
Safari Part Number: SS731HF
Safari Snorkel
The Nissan Pathfinder 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 05/2010 Onwards Spain Built (VIN: VSK) 2.5L Diesel engines.
With the huge air flow demands of each engine in the Nissan 05/2010 Onwards Spain Built (VIN: VSK) 2.5L Diesel Pathfinder, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel Nissan Pathfinder design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Nissan Pathfinder 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Nissan Pathfinder snorkel breezes through the toughest off-road conditions on the planet.
Safari Nissan Pathfinder 4x4 Snorkel Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your 05/2010 Onwards Spain Built (VIN: VSK) 2.5L Diesel engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Nissan Pathfinder 4WD Snorkel fitting guide with an accurate template for assisting with installation.
Safari Snorkel Nissan Pathfinder 4x4 Kit - Parts List
Nissan Pathfinder 4WD Snorkel for 05/2010 Onwards Spain Built (VIN: VSK) 2.5L Diesel Models - Safari Automotive Nissan Pathfinder 4x4 Snorkel Part Number SS731HF

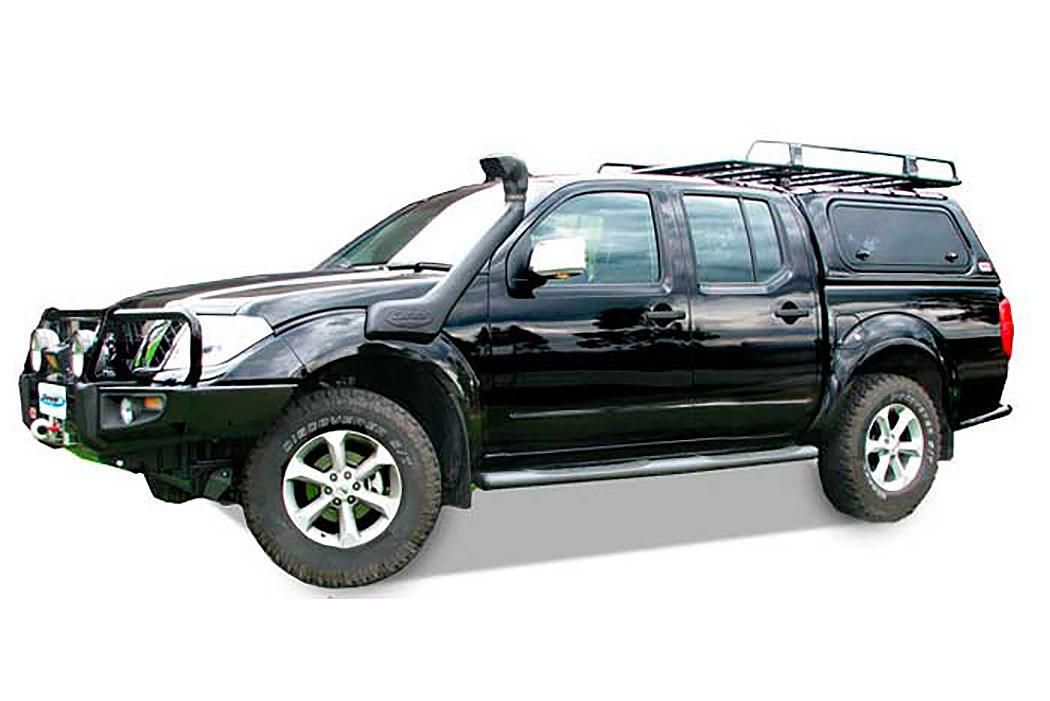

Actual model not shown.
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 430-133-000 | BODY - SNORKEL (SS730HF) | 1 |
| 2 | 000-135-800 | 3 ½" AIR RAM ASSEMBLY | 1 |
| 3 | 430-032-000 | BRACKET - UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) | 3 |
| 5 | 000-951-300 | SCREW - S/T - 4.2mm x 16mm - S/S | 3 |
| 6 | 000-960 | INSERT - PLASTIC | 3 |
| 7 | 000-110 | STUD - 8mm x 1.25 x 25mm - S/S | 4 |
| 8 | 000-311-300 | WASHER - BODY - 8mm x 30mm - S/S | 4 |
| 9 | 000-205-300 | NUT - NYLOC - 8mm x 1.25mm - S/S | 4 |
| 10 | 430-024-300 | HOSE - AIR ENTRY | 1 |
| 11 | 430-025-300 | PLATE - HOSE SUPPORT | 1 |
| 12 | 430-017-300 | TEMPLATE – AIR INLET DUCT | 1 |
| 13 | 000-958-200 | POP RIVET - 4mm x 16mm | 10 |
| 14 | 000-300-350 | WASHER - BODY 4mm x 12mm | 4 |
| 15 | 000-972-119 | GROMMET - RUBBER 19mm | 1 |
| 16 | 000-909 | CLAMP - HOSE - 80/100mm | 1 |
| 17 | 000-914/B | CLAMP - HOSE SIZE 56 (BLACK) | 1 |
| 18 | 430-016-000 | GASKET - FOAM BODY (SELF ADHESIVE) | 1 |
| 19 | 430-017-000 | TEMPLATE - GUARD PANEL | 1 |
Safari Snorkel Installation Guide
Nissan Pathfinder 05/2010 Onwards Spain Built (VIN: VSK) 2.5L Diesel 972.30 KB
