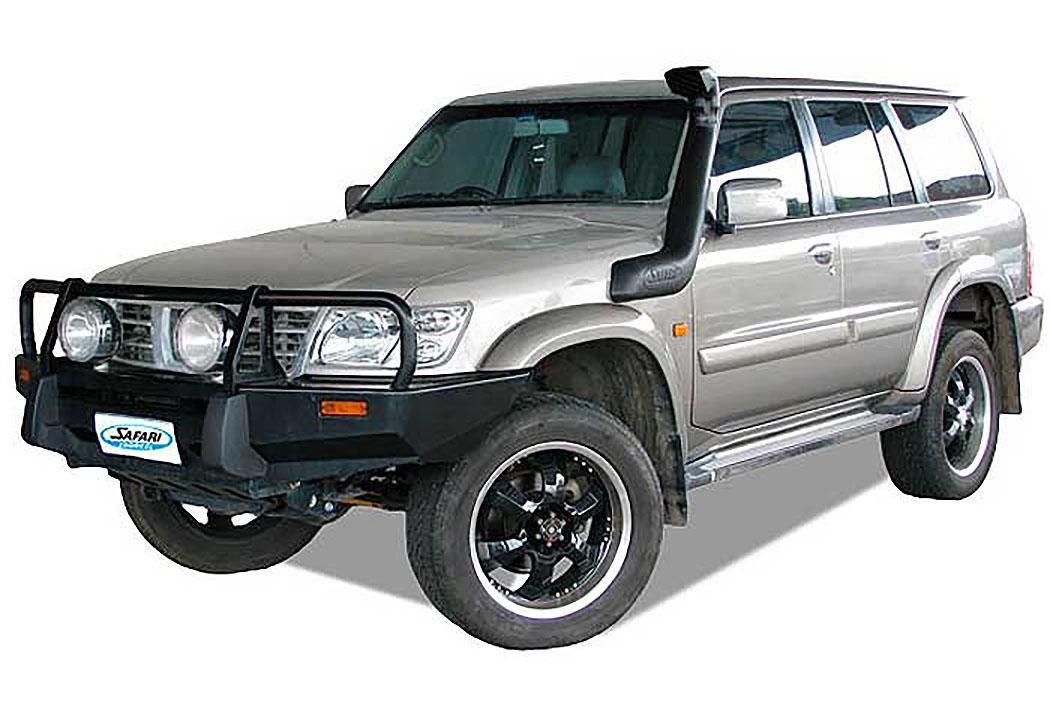

4X4 SNORKEL for the Nissan GU Patrol Cab Chassis Series 1, 2 & 3 TD42 Diesel
Safari Part Number: SS15HFD
Safari Snorkel
The SS15HFD Nissan GU Patrol Cab Chassis 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of Series 1, 2 & 3 TD42 Diesel engines.
With the huge air flow demands of each engine in the Nissan Series 1, 2 & 3 TD42 Diesel GU Patrol Cab Chassis, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel Nissan GU Patrol Cab Chassis design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Nissan GU Patrol Cab Chassis 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Nissan GU Patrol Cab Chassis snorkel breezes through the toughest off-road conditions on the planet.
V-Spec snorkels are identified with a ‘HF’ at the end of the part number. These snorkels are manufactured in Australia from Safari’s own industrial specification UV stabilized polyethylene material. A life time warranty is included for peace of mind when it comes to your vehicle.
R-Spec snorkels are identified with an ‘R’ at the end of the part number. These snorkels are manufactured in Australia from Safari’s own recreational specification UV stabilized polyethylene material. A five year warranty is included for peace of mind when it comes to your vehicle.
Safari Nissan GU Patrol Cab Chassis 4x4 Snorkel Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your Series 1, 2 & 3 TD42 Diesel engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Nissan GU Patrol Cab Chassis 4WD Snorkel fitting guide with an accurate template for assisting with installation.

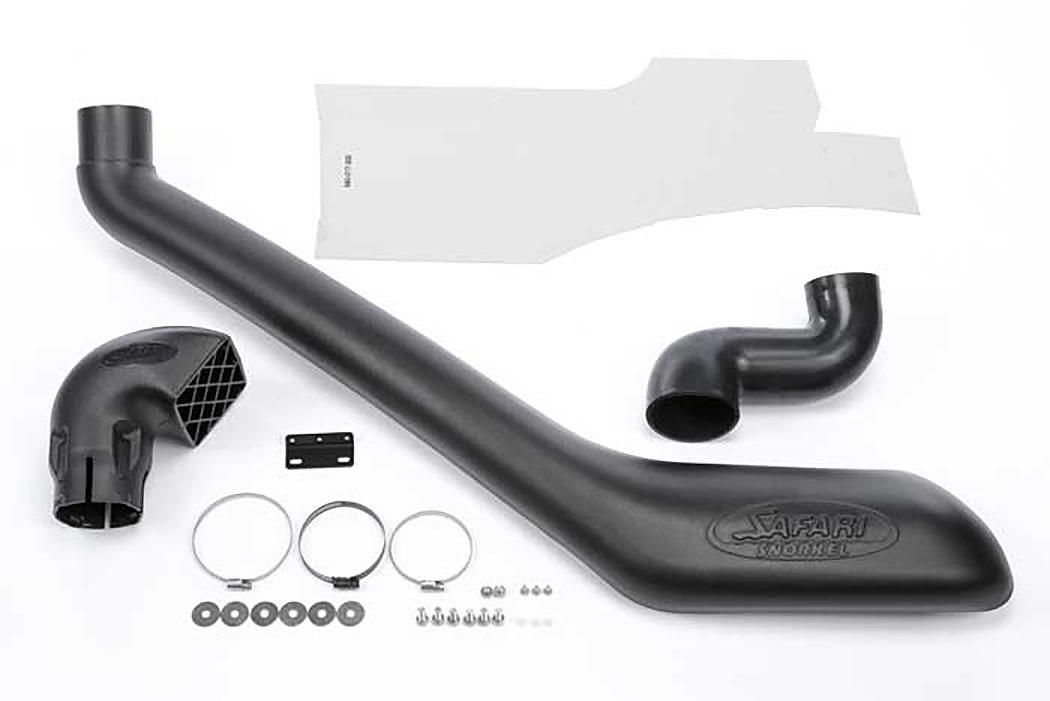

Safari Snorkel Nissan GU Patrol Cab Chassis 4x4 Kit - Parts List
Nissan GU Patrol Cab Chassis 4WD Snorkel for Series 1, 2 & 3 TD42 Diesel Models - Safari Automotive Nissan GU Patrol Cab Chassis 4x4 Snorkel Part Number SS15HFD
Actual model not shown.
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 485-133-500 | BODY - SNORKEL (SS15HFB) | 1 |
| 2 | 000-135-800 | 3 ½" AIR RAM ASSEMBLY | 1 |
| 3 | 485-032-500 | BRACKET - UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT - HEX - S/S - 6mm x 1.0 x 14mm (SEMS) | 2 |
| 5 | 000-951 | SCREW - S/T - S/S - 4.2mm x 13mm | 3 |
| 6 | 000-960 | INSERT - PLASTIC | 3 |
| 7 | 000-110 | STUD - S/S - 8mm x 1.25 x 25mm | 5 |
| 8 | 000-311-300 | WASHER - BODY - S/S - 8mm x 32mm | 5 |
| 9 | 000-205-300 | NUT - NYLOC - S/S - 8mm x 1.25mm | 5 |
| 10 | 485-024-000 | HOSE - SNORKEL OUTLET | 1 |
| 11 | 485-025-000 | JOINER - 90mm OD x 60mm Long | 1 |
| 12 | 485-024-200 | HOSE - AIR CLEANER ENTRY | 1 |
| 13 | 485-025-200 | JOINER - 90mm OD x 48mm Long | 1 |
| 14 | 485-024-400 | ADAPTOR - 90mm ID x 152mm ID x 70mm Long (RUBBER) | 1 |
| 15 | 000-909 | CLAMP - HOSE 80/100mm | 2 |
| 16 | 000-910 | CLAMP - HOSE 90/110mm | 2 |
| 17 | 000-1911 | CLAMP - HOSE 100/120mm | 1 |
| 18 | 000-1916 | CLAMP - HOSE 150/170mm | 1 |
| 19 | 000-914/B | CLAMP - HOSE - No. 56 (BLACK) | 1 |
| 20 | 000-434-030 | FOAM TAPE - 25mm x 300mm | 1 |
| 21 | 485-017-500 | TEMPLATE – GUARD PANEL | 1 |
Safari Snorkel Installation Guide
SS15HFD Nissan GU Patrol Cab Chassis Series 1, 2 & 3 TD42 Diesel 928.42 KB
