4X4 SNORKEL for the Mitsubishi Triton MH 3.0L Petrol

Safari Part Number: SS600R

Safari Snorkel

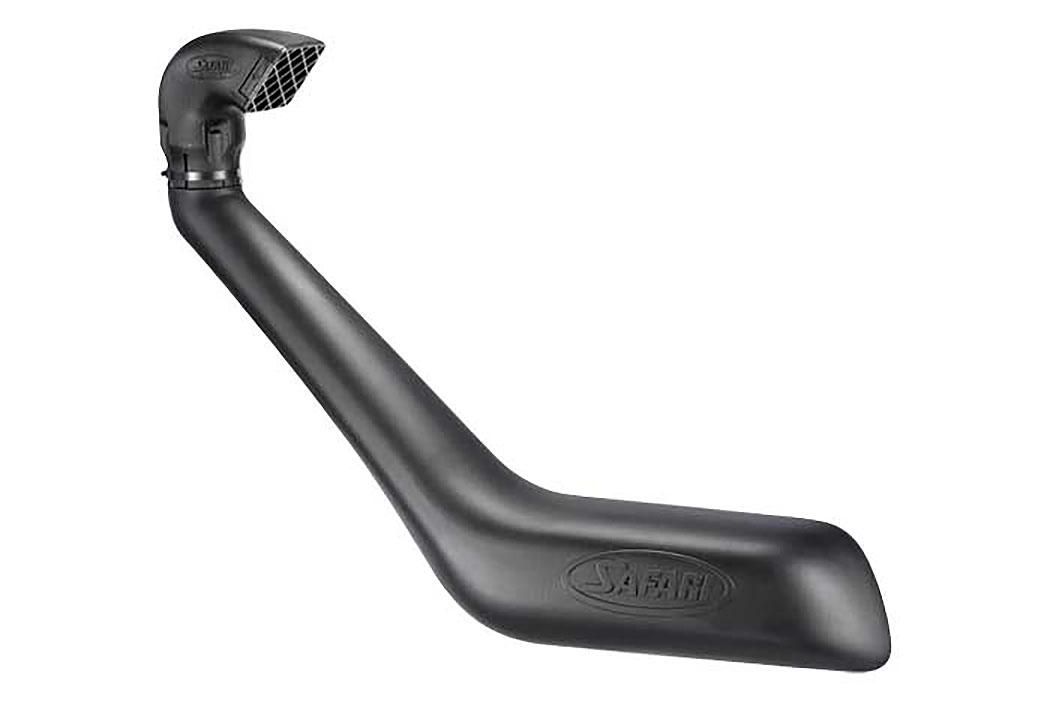

The SS600R Mitsubishi Triton 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of MH 3.0L Petrol engines.

With the huge air flow demands of each engine in the Mitsubishi MH 3.0L Petrol Triton, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Mitsubishi Triton design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Mitsubishi Triton 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Mitsubishi Triton snorkel breezes through the toughest off-road conditions on the planet.

Safari Mitsubishi Triton 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your MH 3.0L Petrol engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Mitsubishi Triton 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Mitsubishi Triton 4x4 Kit - Parts List

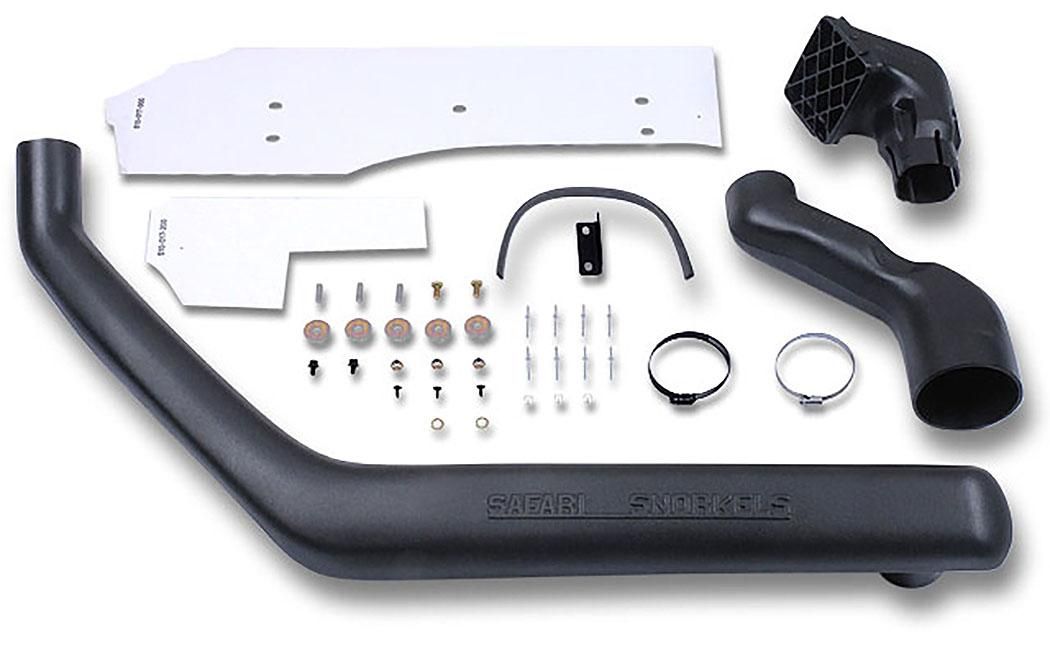

Mitsubishi Triton 4WD Snorkel for MH 3.0L Petrol Models - Safari Automotive Mitsubishi Triton 4x4 Snorkel Part Number SS600R

Mitsubishi Triton 4WD Snorkel for MH 3.0L Petrol Models - Safari Automotive Mitsubishi Triton 4x4 Snorkel Part Number SS600R

1 510-133-000R BODY - SNORKEL 1
2 000-135-050 3" AIR RAM ASSEMBLY 1
3 510-123-000 DUCT - INNER 1
4 510-032-000 BRACKET - UPPER MOUNTING 1
5 000-002-100 BOLT - HEX - 6mm x 1.0 x 12mm 2
6 000-960 CLIP - BODY - PLASTIC 3
7 000-951 SCREW - S/T - 4.2 x 13mm 3
8 000-110 STUD - S/S - 8mm x 1.25 x 25mm - O/L 3
9 000-205-300 NUT - NYLOC - 8mm x 1.25 3
10 000-311-300 WASHER - BODY - 8mm x 30mm 5
11 000-011 BOLT - HEX - 8mm x 1.25 x 16mm 2
12 000-305 WASHER - STAR - 8mm 2
13 000-958 POP RIVETS - 4mm x 12mm 8
14 000-953-040 EDGING – RUBBER – 400mm 1
15 510-017-000 TEMPLATE - OUTER 1
16 510-017-200 TEMPLATE - INNER 1
17 000-908 CLAMP - HOSE - 70/90 1
18 000-918/B HOSE CLAMP – SIZE 48 (BLACK) 1

Safari Snorkel Installation Guide

picture_as_pdfSS600R Mitsubishi Triton MH 3.0L Petrol 313.86 KB
