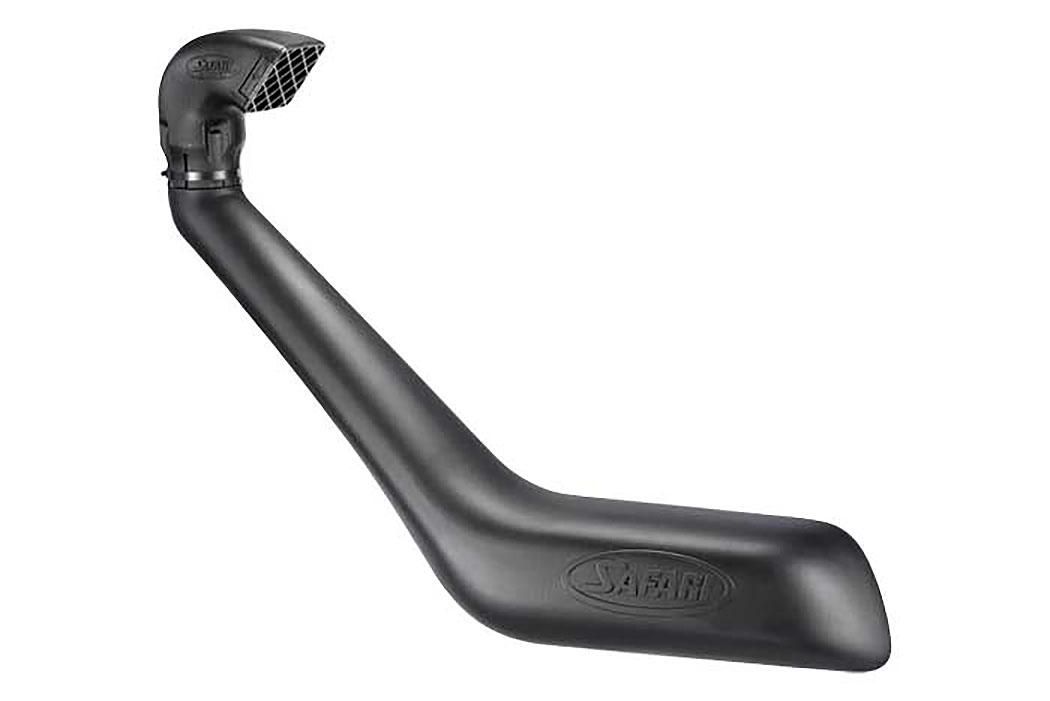

ss960r snorkel mazda bravo

4X4 SNORKEL for the Mazda Bravo Mark 7 2.5L Diesel

Safari Part Number: SS960HF

Safari Snorkel

The SS960HF Mazda Bravo 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of Mark 7 2.5L Diesel Models engines.

With the huge air flow demands of each engine in the Mazda Mark 7 2.5L Diesel Models Bravo, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Mazda Bravo design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Mazda Bravo 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Mazda Bravo snorkel breezes through the toughest off-road conditions on the planet.

Safari Mazda Bravo 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 7 2.5L Diesel engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Mazda Bravo 4WD Snorkel fitting guide with an accurate template for assisting with installation.

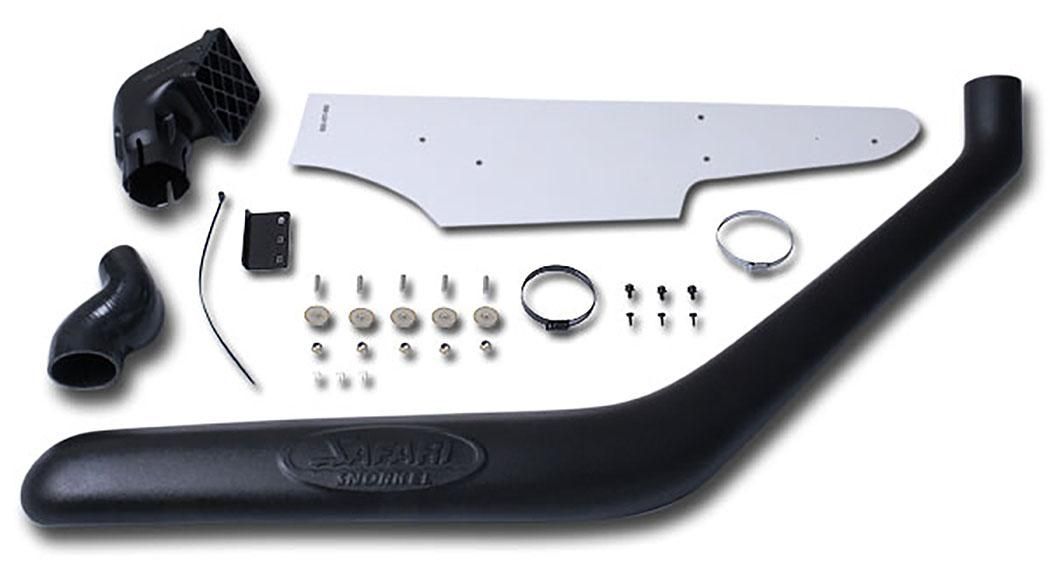

Safari Snorkel Mazda Bravo 4x4 Kit - Parts List

Mazda Bravo 4WD Snorkel for 7 2.5L Diesel Models - Safari Automotive Mazda Bravo 4x4 Snorkel Part Number SS960HF

ss960r mazda bravo snorkel kit

Actual model not shown.

ITEMPART NO.
DESCRIPTION
QTY
1 625-133-000R BODY - Snorkel 1
2 000-135-050 3” AIR RAM ASSEMBLY 1
3 625-032-000 BRACKET - Upper Mounting 1
4 625-024-000 HOSE  - Silicone Air Entry 1
5 000-110 STUDS - S/S 8mm x 1.25mm x 25mm O/L 5
6 000-311-300 WASHER - Body 8mm x 30mm 5
7 000-205-300 NUT - Nyloc 8mm x 1.25mm 5
8 000-002-100 BOLT - Hex 6mm x 1.0mm x14mm 3
9 000-951-300 SCREW - S/T 4.2mm x 16mm 3
10 000-960 CLIP - Body (plastic) 3
11 000-908 CLAMP - Hose 70/90mm 1
12 000-987-365 CABLE TIE 7.8mm x 365mm 1
13 625-017-000 TEMPLATE 1
14 000-918/B HOSE CLAMP - SIZE 48 (BLACK) 1

Safari Snorkel Installation Guide

picture_as_pdfSS960HF Mazda Bravo Mark 7 2.5L Diesel
