4X4 SNORKEL for the Land Rover Discovery 4 10/2009 Onwards All Diesel Models
Safari Part Number: SS385HF
Safari Snorkel
The SS385HF Land Rover Discovery 4 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 10/2009 Onwards All Diesel Model engines.
With the huge air flow demands of each engine in the Land Rover 10/2009 Onwards All Diesel Models Discovery 4, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel Land Rover Discovery 4 design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Land Rover Discovery 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Land Rover Discovery snorkel breezes through the toughest off-road conditions on the planet.
Safari Land Rover Discovery 4 4x4 Snorkel Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your 10/2009 Onwards All Diesel Model engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Land Rover Discovery 4WD Snorkel fitting guide with an accurate template for assisting with installation.

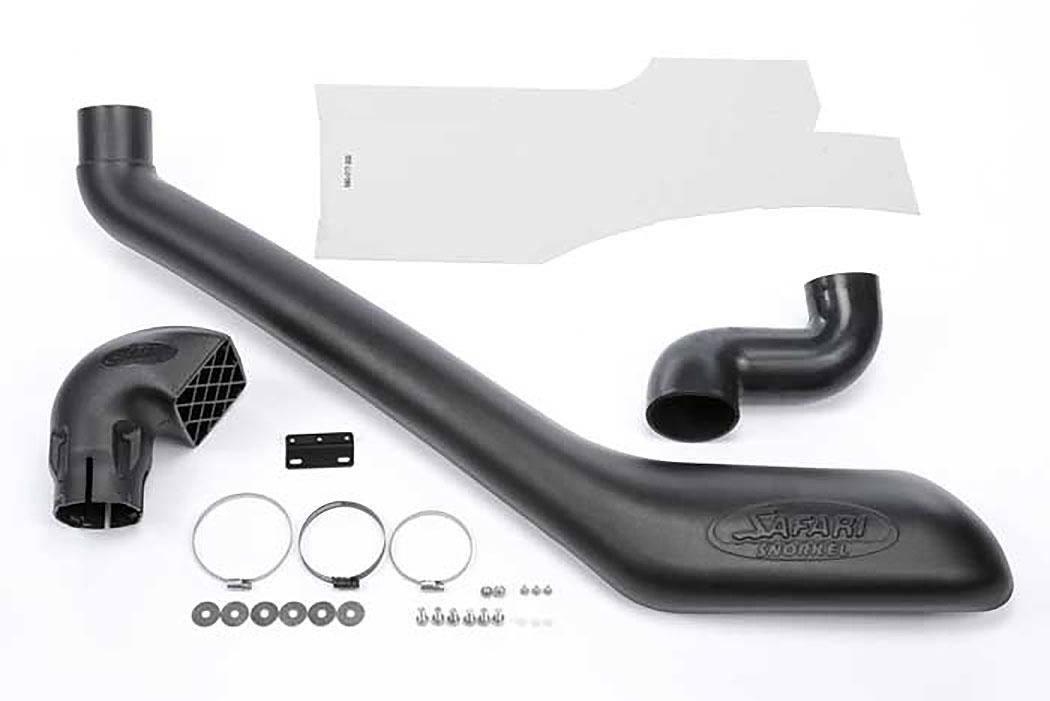

Safari Snorkel Land Rover Discovery 4 4x4 Kit - Parts List
Land Rover Discovery 4 4WD Snorkel for 10/2009 Onwards All Diesel Models - Safari Automotive Land Rover Discovery 4 4x4 Snorkel Part Number SS385HF
Actual model not shown.
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 830-133-800 | BODY – SNORKEL | 1 |
| 2 | 000-135-800 | 3½” AIR RAM ASSEMBLY | 1 |
| 3 | 830-032-800 | BRACKET - UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) | 3 |
| 5 | 000-958-350 | POP RIVET – 4.8mm x 14mm | 8 |
| 6 | 000-110 | STUD – S/S - 8mm x 1.25 x 25mm O/L | 2 |
| 7 | 000-311 | WASHER - BODY - 8mm x 30mm | 2 |
| 8 | 000-205 | NUT - NYLOC - 8mm x 1.25mm | 2 |
| 9 | 000-108 | STUD – S/S 6mm x 1.0 x 25mm OL | 3 |
| 10 | 000-321 | WASHER - BODY - 6mm x 20mm | 3 |
| 11 | 000-204 | NUT - NYLOC - 6mm x 1.0mm | 3 |
| 12 | 830-023-800 | DUCT – CONNECTING | 1 |
| 13 | 000-887-075 | CUFFED HOSE – 82mm ID x 750mm | 1 |
| 14 | 000-909 | CLAMP HOSE – 80/100mm | 2 |
| 15 | 830-410-800 | SEAL – FOAM | 1 |
| 16 | 830-017-800 | TEMPLATE – GUARD PANEL | 1 |
| 17 | 830-217-800 | TEMPLATE – INNER GUARD | 1 |
| 18 | 830-217-825 | TEMPLATE – MOUNTING BRACKET | 1 |
| 19 | 830-217-850 | TEMPLATE – ‘A’ PILLAR TRIM | 1 |
| 20 | 000-914/B | HOSE – CLAMP – SIZE 56 (BLACK) | 1 |
Safari Snorkel Installation Guide
Land Rover Discovery 4 10/2009 Onwards All Diesel Models 853.16 KB
