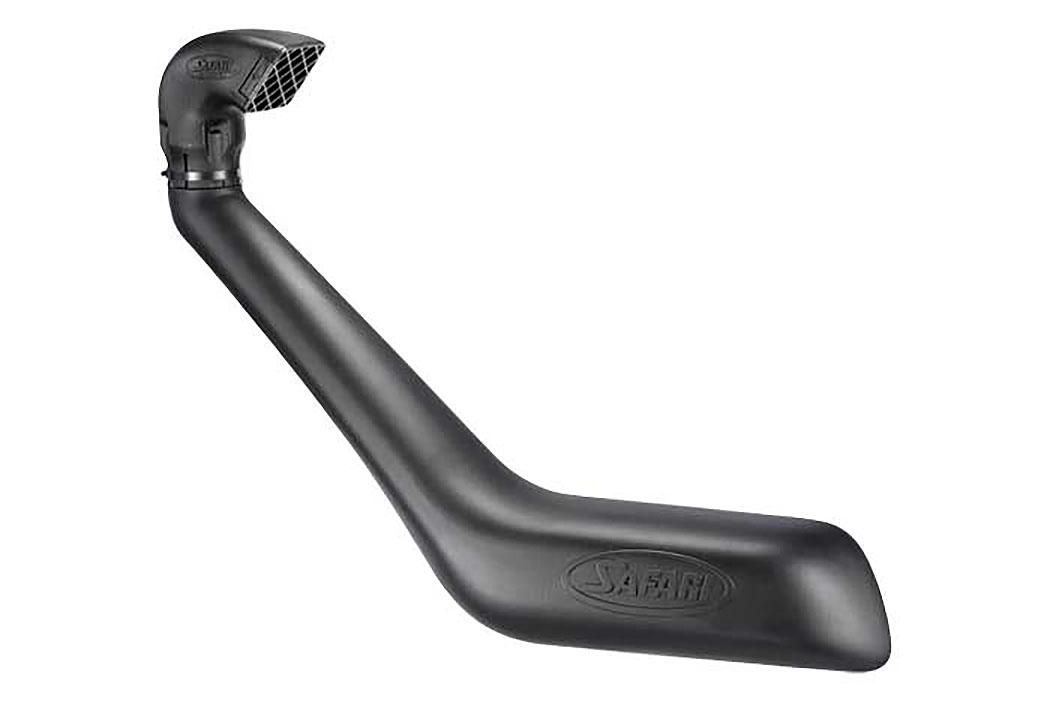

ss550r snorkel land rover defender 300 series

4X4 SNORKEL for the Land Rover Defender 300 Series 03/1994 Onwards 2.5L Diesel

Safari Part Number: SS550HF

Safari Snorkel

The SS550HF Land Rover Defender 300 Series 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 03/1994 Onwards 2.5L Diesel engines.

With the huge air flow demands of each engine in the Land Rover 03/1994 Onwards 2.5L Diesel Defender 300 Series, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Land Rover Defender 300 Series design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Land Rover Defender 300 Series 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Land Rover Defender 300 Series snorkel breezes through the toughest off-road conditions on the planet.

Safari Land Rover Defender 300 Series 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your 03/1994 Onwards 2.5L Diesel engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Land Rover Defender 300 Series 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Land Rover Defender 300 Series 4x4 Kit - Parts List

LanLand Rover Defender 300 Series 4WD Snorkel for 03/1994 Onwards 2.5L Diesel Models - Safari Automotive Land Rover Defender 300 Series 4x4 Snorkel Part Number SS550HF

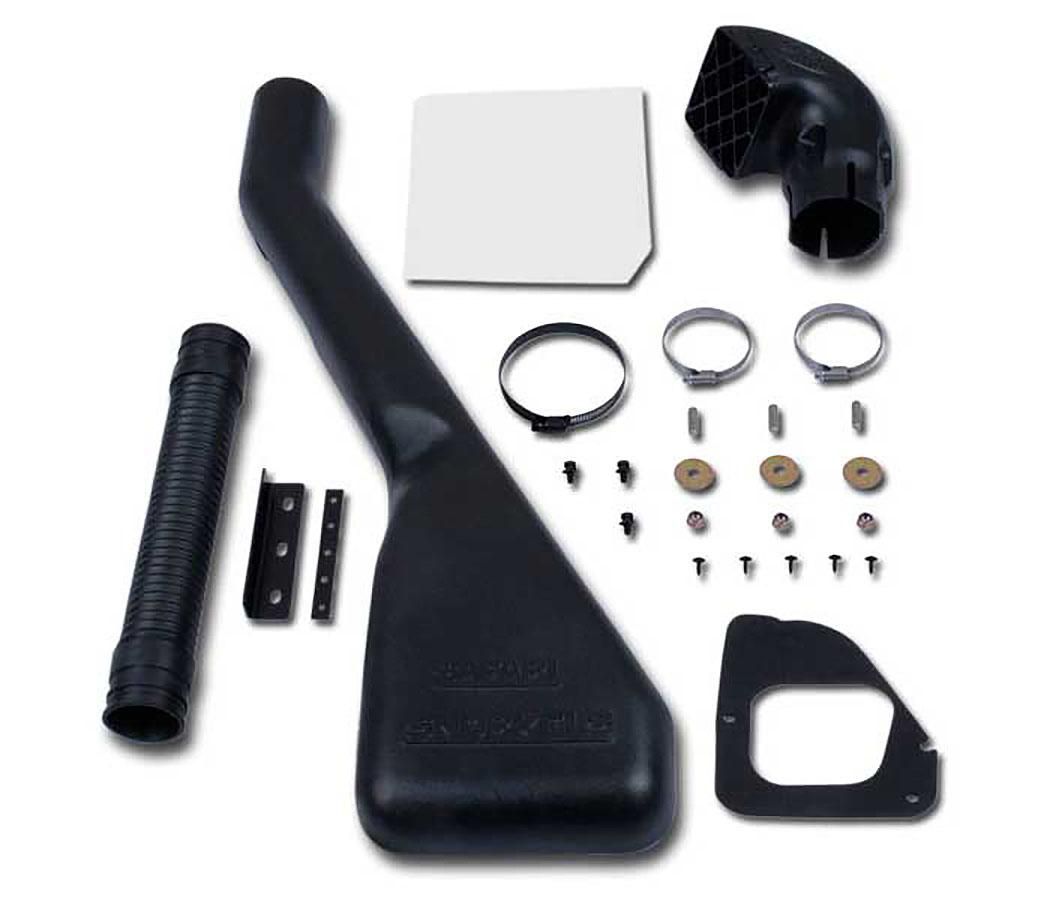

ss550r land rover defender 300 series snorkel kit

ITEMPART NO.
DESCRIPTION
 		QTY
1 810-133-200R BODY SNORKEL 1
2 000-135-650 3 1/2" AIR RAM - Assembly 1
3 810-032-000 BRACKET - Upper - Mounting 1
4 810-435-000 GASKET 1
5 000-002-100 BOLT - Hex - 6mm x 1.0 x 12mm 3
6 000-110 STUD - 8mm x 1.25 x 25mm - O/L 3
7 000-311-300 WASHER - Body - 8mm x 30mm 3
8 000-205-300 NUT - Nyloc - 8mm x 1.25 3
9 000-951 SCREW - S/T - 4.2mm x 13mm 5
10 810-016-200 GASKET - Foam Body 1
11 810-017-200 TEMPLATE 1
12 000-881-040 CUFFED HOSE - 60mm ID x 400mm 1
13 000-906 HOSE - CLAMP - 50/70mm  - (SILVER) 1
14 000-914/B HOSE - CLAMP - SIZE 56 (BLACK) 1
15 000-441-200 SLEEVE – AIR RAM 1

Safari Snorkel Installation Guide

picture_as_pdfSS550HF Land Rover Defender 300 Series 03/1994 Onwards 2.5L Diesel 526.72 KB
