ISUZU RG
D-MAX/MU-X

3.0L Diesel
2020 Onwards (D-MAX)
06/2021 Onwards (MU-X)

Armax SNORKEL

Safari Part Number: SS177HP

WARNING: Does NOT suit D-MAX Blade models.

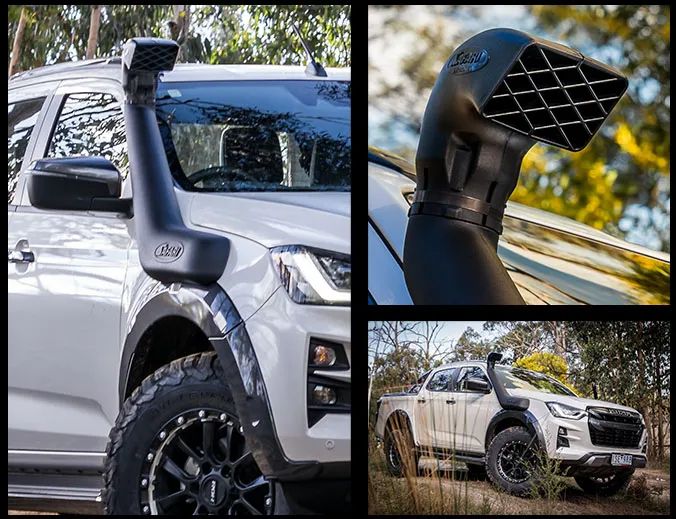

Designed for the Isuzu 2020 Onwards D-MAX and 06/2021 Onwards MU-X 3.0L Diesel, the SS177HP Safari ARMAX snorkel offers a +32% increase in airflow over the standard raised air intake. This upgrade provides the additional air volume needed for high-performance enhancements like advanced engine tuning and improved exhaust systems. Whether navigating off-road trails or cruising the highway, this snorkel ensures your engine receives the necessary airflow for superior performance.

The snorkel features our Next Generation 4" Air Ram that has been extensively tested using Computational Fluid Dynamics (CFD) for airflow precision, Finite Element Analysis (FEA) for structural robustness, and Noise, Vibration, and Harshness (NVH) testing to minimize unwanted noise and vibrations. The result is a durable and efficient system that can endure the most extreme conditions while keeping your engine supplied with clean, fresh air.

The snorkel’s dual design filters out dust and rainwater, ensuring that only clean air enters your engine. Being an elevated air intake, it provides critical protection, ensuring your engine performs optimally even in the most demanding environments.


  • Safari ARMAX Next Generation 4” Air Ram with an optimized airflow, low restriction grill for enhanced efficiency and performance.
  • Comprehensive testing in CFD (Computational Fluid Dynamics), FEA (Finite Element Analysis) and NVH (Noise, Vibration, Harshness) standards on the Safari Next Generation 4” Air Ram
  • +32% Increase in airflow over the standard air intake assembly
  • Stainless steel hardware and EPDM moulded rubber connection hose
  • Tested and approved on Safari’s in-house industry leading 1200CFM Airflow bench
  • Rated to withstand temperatures in excess of 100 degrees Celsius
  • Water separating Air Ram designed to remove water and dust from incoming airstream
  • Proudly Australian Designed, Moulded and Manufactured
  • Lifetime Warranty
Learn more about Safari Snorkels Where to buy

V-SPEC SNORKEL

Safari Part Number: SS177HF

The SS177HF Safari V-SPEC snorkel, meticulously designed, manufactured, and rigorously tested in Australia, is the premium choice for the Isuzu 2020 Onwards D-MAX and 06/2021 Onwards MU-X 3.0L Diesel. This snorkel is engineered to thrive in the harshest environments, providing a consistent flow of cooler, cleaner air to your engine and safeguarding it from dust and water ingress.

Proudly Australian-made, the SS177HF snorkel upholds the highest standards of quality and durability. It undergoes extensive testing to ensure exceptional performance and longevity. The traditional 3.5” air ram is crafted with precision, serving as an efficient water separator that filters out dust and water before it reaches your engine. Built to withstand extreme conditions, the SS177HF snorkel delivers unparalleled reliability, offering robust protection and confidence for your Isuzu in any off-road adventure.


  • Safari V-SPEC Traditional 3.5” Air Ram with an optimised airflow, low restriction grill
  • Stainless steel hardware and EPDM moulded rubber connection hose
  • Tested and approved on Safari’s in-house industry leading 1200CFM airflow bench to match OE air intake requirements
  • Rated to withstand temperatures in excess of 100 degrees Celsius
  • Water separating Air Ram designed to remove water and dust from incoming airstream
  • Proudly Australian Designed, Moulded and Manufactured
  • Lifetime Warranty
Learn more about Safari Snorkels Where to buy
