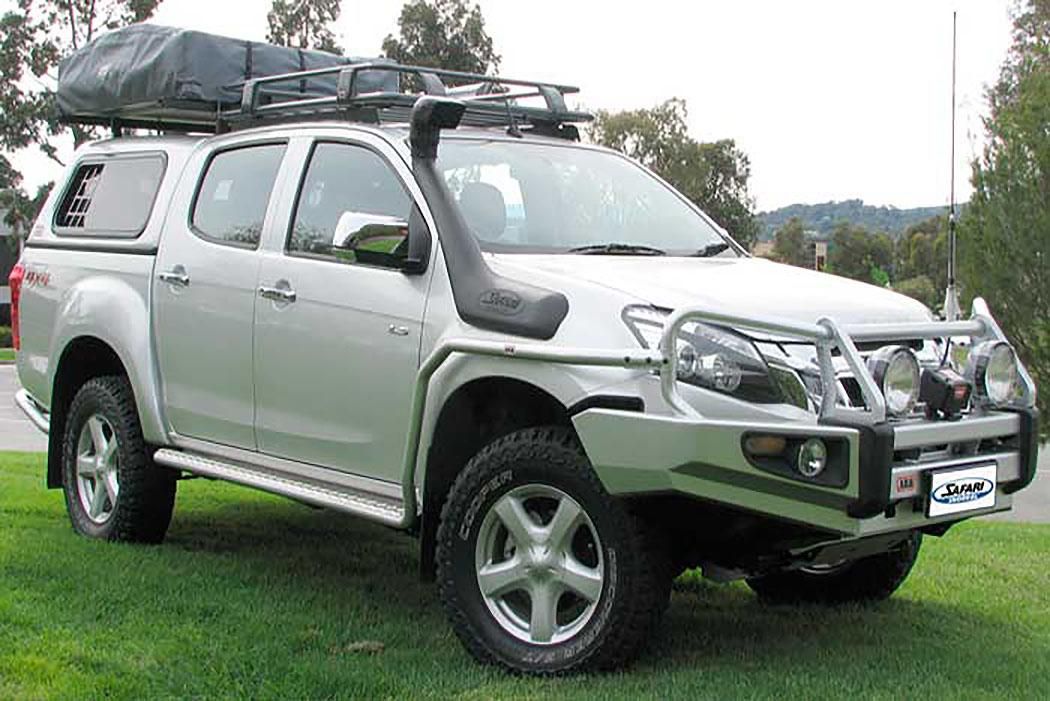

4X4 SNORKEL for the GM/Isuzu D-Max/MU-X 06/2012 Onwards 3.0L Diesel
Safari Part Number: SS175HF
Safari Snorkel
*DOES NOT SUIT 4x2 NARROW BODY MODELS
*ALSO SUITS 2017 FACELIFT
The SS175HF GM/Isuzu D-Max/MU-X Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 06/2012 onwards 3.0L Diesel engines.
With the huge air flow demands of each engine in the GM/Isuzu 06/2012 onwards 3.0L Diesel D-Max/MU-X, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel GM/Isuzu D-Max/MU-X design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari GM/Isuzu D-Max/MU-X 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the GM/Isuzu D-Max/MU-X snorkel breezes through the toughest off-road conditions on the planet.
Safari GM/Isuzu D-Max/MU-X 4x4 Snorkel Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your 06/2012 onwards 3.0L Diesel engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive GM/Isuzu D-Max/MU-X 4WD Snorkel fitting guide with an accurate template for assisting with installation.
Safari Snorkel GM/Isuzu D-Max/MU-X 4x4 Kit - Parts List
GM/Isuzu D-Max/MU-X 4WD Snorkel for 06/2012 onwards 3.0L Diesel Models - Safari Automotive GM/Isuzu D-Max/MU-X 4x4 Snorkel Part Number SS175HF
Actual model not shown.
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 740-133-000 | BODY - SNORKEL (SS175HF) | 1 |
| 2 | 000-135-800 | 3 ½" AIR RAM ASSEMBLY | 1 |
| 3 | 740-032-000 | BRACKET - UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) | 2 |
| 5 | 000-951-300 | SCREW - S/T - 4.2mm x 16mm - S/S | 3 |
| 6 | 000-960 | INSERT - PLASTIC | 3 |
| 7 | 000-110 | STUD - 8mm x 1.25 x 25mm - S/S | 6 |
| 8 | 000-311-300 | WASHER - BODY - 8mm x 30mm - S/S | 6 |
| 9 | 000-205-300 | NUT - NYLOC - 8mm x 1.25mm - S/S | 6 |
| 10 | 740-024-000 | HOSE - AIR ENTRY | 1 |
| 11 | 740-217-000 | TEMPLATE - INNER GUARD | 1 |
| 12 | 000-909 | CLAMP - HOSE - 80/100mm | 1 |
| 13 | 000-910 | CLAMP - HOSE - 90/110mm | 1 |
| 14 | 000-914/B | CLAMP - HOSE - SIZE 56 (BLACK) | 1 |
| 15 | 740-017-000 | TEMPLATE - GUARD PANEL | 1 |
