Safari Snorkel

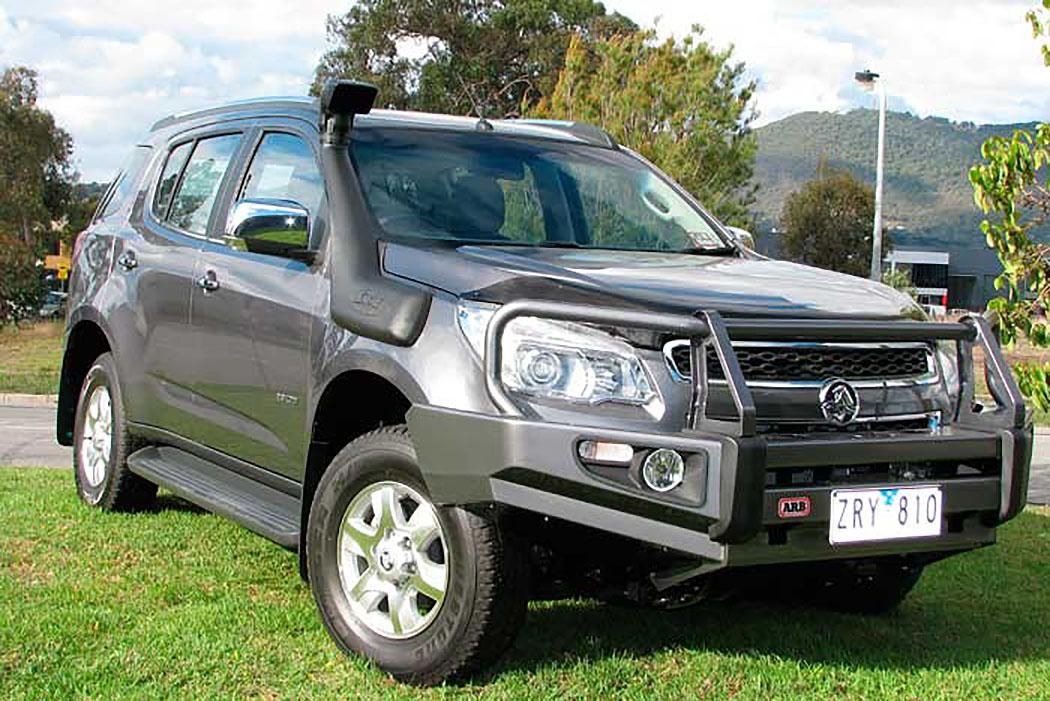

The SS176HF GM/Isuzu Colorado/Colorado 7 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of RG 05/2012 Onwards 2.8L Diesel engines.
With the huge air flow demands of each engine in the GM/Isuzu RG 05/2012 Onwards 2.8L Diesel Colorado/Colorado 7, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel GM/Isuzu Colorado/Colorado 7 design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari GM/Isuzu Colorado/Colorado 7 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the GM/Isuzu Colorado/Colorado 7 snorkel breezes through the toughest off-road conditions on the planet.
V-Spec snorkels are identified with a ‘HF’ at the end of the part number. These snorkels are manufactured in Australia from Safari’s own industrial specification UV stabilized polyethylene material. A life time warranty is included for peace of mind when it comes to your vehicle.
R-Spec snorkels are identified with an ‘R’ at the end of the part number. These snorkels are manufactured in Australia from Safari’s own recreational specification UV stabilized polyethylene material. A five year warranty is included for peace of mind when it comes to your vehicle.
Safari GM/Isuzu Colorado/Colorado 7 4x4 Snorkel Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your RG 05/2012 Onwards 2.8L Diesel engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive GM/Isuzu Colorado/Colorado 7 4WD Snorkel fitting guide with an accurate template for assisting with installation.
Safari Snorkel GM/Isuzu Colorado/Colorado 7 4x4 Kit - Parts List
GM/Isuzu Colorado/Colorado 7 4WD Snorkel for RG 05/2012 Onwards 2.8L Diesel Models - Safari Automotive GM/Isuzu Colorado/Colorado 7 4x4 Snorkel Part Number SS176HF
Actual model not shown.
SS176HF PARTS LIST
ITEM | PART NO. | DESCRIPTION | QTY |
---|---|---|---|
1 | 745-133-000 | BODY - SNORKEL (SS176HF) | 1 |
2 | 000-135-800 | 3 ½" AIR RAM ASSEMBLY | 1 |
3 | 745-032-000 | BRACKET - UPPER MOUNTING | 1 |
4 | 000-002-100 | BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) | 2 |
5 | 000-951-300 | SCREW - S/T - 4.2mm x 16mm - S/S | 3 |
6 | 000-960 | INSERT - PLASTIC | 3 |
7 | 000-110 | STUD - 8mm x 1.25 x 25mm - S/S | 6 |
8 | 000-311-300 | WASHER - BODY - 8mm x 30mm - S/S | 6 |
9 | 000-205-300 | NUT - NYLOC - 8mm x 1.25mm - S/S | 6 |
10 | 745-024-000 | HOSE - AIR ENTRY | 1 |
11 | 745-025-000 | ADAPTOR - STEEL 90mmOD x 60mm (notched relief) | 1 |
12 | 000-958-150 | POP RIVET - 4.0mm x 13m | 3 |
13 | 745-217-000 | TEMPLATE - AIR CLEANER INLET | 1 |
14 | 000-909 | CLAMP - HOSE - 80/100mm | 1 |
15 | 000-910 | CLAMP - HOSE - 90/110mm | 1 |
16 | 000-914/B | CLAMP - HOSE - SIZE 56 (BLACK) | 1 |
17 | 745-017-000 | TEMPLATE - GUARD PANEL | 1 |
Safari Snorkel Installation Guide
SS176HF GM/Isuzu Colorado/Colorado 7 RG 05/2012 Onwards 2.8L Diesel 662.49 KB
