4X4 SNORKEL for the FORD RANGER - PJ 12/2006 - 03/2009 3.0L Diesel

Safari Part Number: SS970HF

Safari Snorkel

The SS970HF Ford Ranger 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of PJ 12/2006 - 03/2009 3.0L Diesel engines.

With the huge air flow demands of each engine in the PJ 12/2006 - 03/2009 3.0L Diesel Ford Ranger, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

Huge air flow is but one aspect of the ultimate in snorkel Ford Ranger design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

The genuine Safari Ford Ranger 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Ford Ranger snorkel breezes through the toughest off-road conditions on the planet.

Safari Ford Ranger 4x4 Snorkel Features

  • Safari Automotive Australian designed, moulded and manufactured
  • Raised air intake to prevent your engine from ingesting harmful elements
  • Increased airflow for your PJ 12/2006 - 03/2009 3.0L Diesel engine
  • Water separating air ram design to remove water from the air stream
  • Durable and UV stable snorkel and air ram for added strength
  • Comprehensive Ford Ranger 4WD Snorkel fitting guide with an accurate template for assisting with installation.

Safari Snorkel Ford Ranger 4x4 Kit - Parts List

Ford Ranger 4WD Snorkel for PJ 12/2006 - 03/2009 3.0L Diesel - Safari Automotive Ford Ranger 4x4 Snorkel Part Number SS970HF

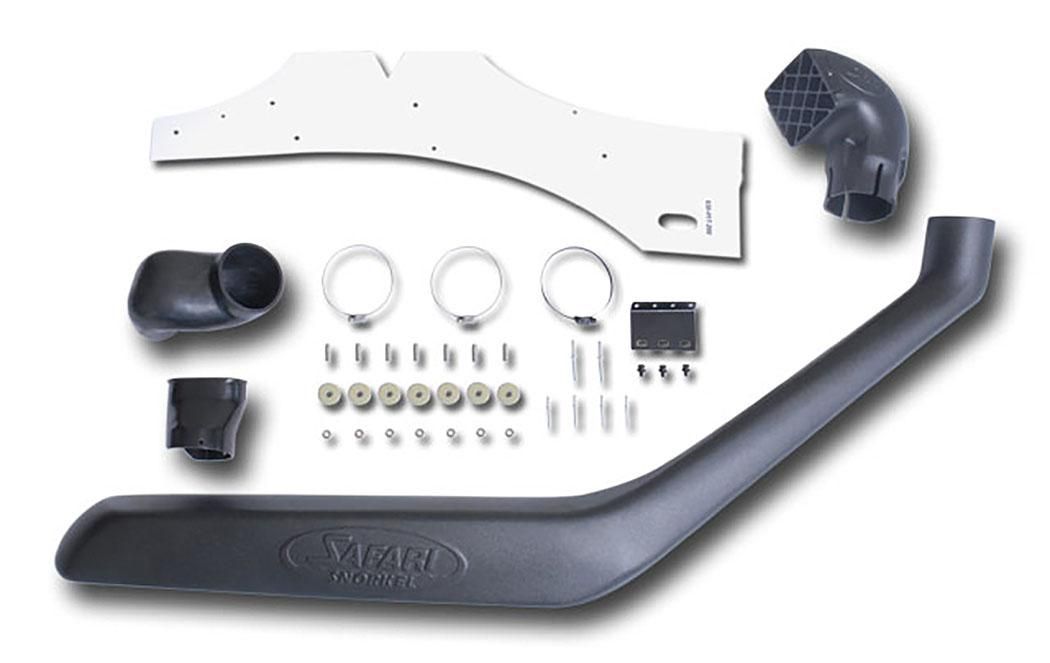

ss970r ford ranger snorkel kit

ITEMPART NO.
DESCRIPTION
QTY
1 630-133-200R BODY - SNORKEL 1
2 000-135-650 3 1/2" AIR RAM ASSEMBLY 1
3 630-024-200 HOSE - AIR ENTRY 1
4 630-023-000 ADAPTOR - AIR CLEANER 2
5 630-032-200 BRACKET - UPPER MOUNTING 1
6 000-958-300 POP RIVET - 4.8mm x 12mm 4
7 000-002-100 BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) 3
8 000-110 STUD - S/S - 8mm x 1.25 x 25mm - O/L 7
9 000-311-300 WASHER - BODY - 8mm x 30mm 7
10 000-205-300 NUT - NYLOC - 8mm x 1.25mm 7
11 000-958-400 POP RIVET - 4.8mm x 21mm 2
12 000-909 CLAMP - HOSE - 80/100mm 2
13 000-914/B HOSE CLAMP - SIZE 56 (BLACK) 1
14 630-017-200 TEMPLATE 1
